Side-by-side image comparison

  1. Before you start
  2. Creating a project
  3. Adding a task pool
  4. Uploading tasks
  5. Starting a pool and getting results
Tip.

Run the project in the Sandbox first. This helps you avoid making mistakes and spending money on a task that isn't working right.

This project template it is suitable for those cases when you need to compare similar or different images, illustrations, and interfaces in pairs (side-by-side, SbS).

Use this template when you need to:

  • You need to understand which interface design users like best.
  • Testing different images in targeted ads.
  • Choose the best images for publications, illustrations, or desktop backgrounds.

Let's say you have photos of cats and you want to determine whether they are the same or different. To do this, create a task where the performer needs to compare two photos and answer whether they are duplicates or not.

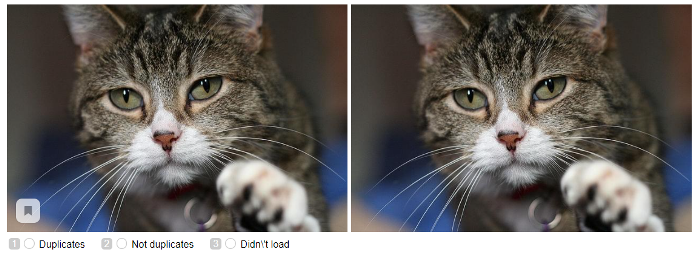

Example of a prepared task


Before you start

To use your images in the project, you will need to upload them to a storage from which you can get file links. For example, your server, photo hosting, or cloud storage:

If you have a complex project, register in the sandbox and create a project there. There you can:

  1. Test the project settings as a performer.
  2. Then transfer them to the production version.
  3. Launch the project for real performers.

This helps you avoid making mistakes and spending unnecessary money on a task that doesn't work.

Creating a project

In the project, you define what the task will look like for the performer.

  1. Choose a template:

    1. Click Create project.

    2. Select the Side-by-Side image comparison template.

  2. Provide general information:

    1. Enter a clear name and a short description for the project. Performers will see this in the task list.

    2. Optionally add a Private comment.

    3. Click Save.

  3. Edit the task interface in the editor you selected:

    Template Builder
    HTML/CSS/JS editor
    1. The task interface describes how the elements should be arranged in the task.

      Use the ready-made code for this project with pre-configured validation, hot keys and task layout. The performer won't be able to submit a response without selecting one of the options.

      Learn more about setting up conditions in the Template Builder Help.

    2. To specify what data you will pass to the performer and receive in response, create input and output data fields.

      What are input and output data?

      Input data is types of objects that are passed to the performer for completing the task. For example, this could be a text, an image, or geographic coordinates.

      Output data is types of objects that you receive after the task is completed. For example, this could be one of several response options, typed text, or an uploaded file.

      Input data fields are created from the code on the Example of input data tab.

      The output data fields depend on the components that use data.output and values supported by it.

      Click Show specifications to see the input and output data fields.

      Learn more about input and output data fields in the Template Builder Help.

      In this project:

      • Input data fields:

        • image_left — A link to upload the left image.
        • image_right — A link to upload the right image.
      • Output data field: result — string for saving the performer's response.
    3. Most people view images from left to right, so the first image can affect the perception of the second. If you shuffle images in tasks, the reliability of the survey results increases. Images in pairs will be displayed each time in a new order for different performers.

      How do I make a task if I need to mix images?

      If you need to compare:

      Only two images
      • You can shuffle the images manually when you create a TSV file with links. Make two tasks with different image order. In the TSV file (using Excel, for example), add another line with two links that will be placed differently from the first line. One line is one page with one task for the performer. This will be the case after you apply the settings described below.

      • In the next step Adding a task pool, you need to configure the quality control rule called Submitted responses so that each performer gets only one task.

        Add a block and set the following parameters:

        This means that after the performer completes one task, they aren't offered the next one. The response will be accepted and the task completed.

      Many images

      You can display them in random order in the interface. We recommend creating a test project following the instructions in the Which of the found items is more similar to the initial one? section.

    1. The task interface describes how the elements should be arranged in the task.

      In the HTML interface, use the standard HTML tags and special expressions in double curly brackets for input and output data fields.

      For this project, leave the HTML, JS, and CSS blocks unchanged.

    2. In the Data specification section, you can configure the input and output data fields.

      What are input and output data?

      Input data is types of objects that are passed to the performer for completing the task. For example, this could be a text, an image, or geographic coordinates.

      Output data is types of objects that you receive after the task is completed. For example, this could be one of several response options, typed text, or an uploaded file.

      Learn more about input and output data fields.

      In this project:

      • Input data fields:

        • image_left — A link to upload the left image.
        • image_right — A link to upload the right image.
      • Output data field: result — string for saving the performer's response.
    3. Most people view images from left to right, so the first image can affect the perception of the second. If you shuffle images in tasks, the reliability of the survey results increases. Images in pairs will be displayed each time in a new order for different performers.

      How do I make a task if I need to mix images?

      If you need to compare:

      Only two images.
      • You can shuffle the images manually when you create a TSV file with links. Make two tasks with different image order. In the TSV file (using Excel, for example), add another line with two links that will be placed differently from the first line. One line is one page with one task for the performer. This will be the case after you apply the settings described below.



      • In the next step Adding a task pool, you need to configure the quality control rule called Submitted responses so that each performer gets only one task.

        Add a block and set the following parameters:

        This means that after the performer completes one task, they aren't offered the next one. The response will be accepted and the task completed.

      Many images.

      You can display them in random order in the interface. You need to edit the specification as well as the HTML and JS blocks. We recommend creating a test project following the instruction in the Which of the found items is more similar to the initial one? section.

    4. Click to see the performer's view of the task.

      Note. The project preview shows one task with standard data. You can define the number of tasks to show on the page later.

      Check if the task options work correctly. In the lower-right corner, click Submit.

      To exit preview mode, click Exit in the lower-left corner.

    5. Save the changes.

    1. Write short and clear instructions. Describe what needs to be done and give examples in them.

      You can prepare instructions in HTML format, then copy and paste into the editor. Click <> to switch to HTML mode.

    2. Click Finish.

Learn more about working with the project in Project.

Adding a task pool

A pool is a set of paid tasks sent out for completion at the same time.

  1. Open the project and click Add pool.
  2. Give the pool any convenient name and description. The pool info is only available to you. Performers can view only the project name and description.
  3. Set the price per task suite (for instance, $0.01).
    What is a task suite?

    A task suite can contain one or several tasks that are shown on the same page. If the tasks are simple, you can add 10-20 tasks per suite. Don't make task suites too long because it slows down loading speed for performers.

    Performers get paid for completing the entire task suite.

    The number of tasks per suite is set when uploading tasks.

    What is a fair price for a task suite?

    The general rule of pricing is the more time the performer spends to complete the task, the higher the price is.

    You can register in Toloka as a performer and find out how much other requesters pay for tasks, or see examples of cost for different types of tasks.

  4. Add Filters to select performers. To make your task available only to English-speaking users, set filters by language and country detected by the phone number.
  5. Set up Quality control. Quality control rules allow you to filter out inattentive performers. You can also set up quality control in the project.

    • Typical quality control setting for such tasks is Fast responses. Add a block and specify the following values:

      This means that a performer who completes a task suite in less than 5 seconds will be suspended for 10 days and won't be able to access your tasks.

      Attention. The assignments submitted by banned performers will be taken into account if they are not rejected manually using assignment review They can be reassigned by setting up the Recompletion of assignments from banned users rule.
  6. Set Overlap, which is the number of performers to complete the same task. For image comparison tasks, 20.
  7. In the Speed/quality ratio block, you can leave the settings unchanged. For the image comparison, the performer's rating isn't too important.
  8. Set the Time allowed for completing a task suite. It should be long enough to read the instructions and wait for task data to download. (for example, 600 seconds).
  9. Save the pool.

Uploading tasks

Prepare your own task file. Check out the example in the demo TSV file. In the Toloka interface under the pool name, there are links to TSV file templates for regular, control, and training tasks.

  1. Click Upload. In the window that opens, you can also download a sample TSV file by clicking Sample file for uploading tasks.
    What is TSV?
    A TSV file presents a table as a text file in which columns are separated by tabs.
    You can work with it in a table editor or in a text editor, and then save it to the desired format. Learn more about working with a TSV file. There is a CSV format that is similar to TSV, but you should use a TSV file for uploading.
    Note. The file must be saved in UTF-8 encoding.
  2. Add input data in it. The input data column headings that contain the word INPUT. Leave the other columns empty.
  3. Load the tasks by choosing Specify manually. Set the value to 1.
    What does "Set manually" mean?
    Set manually is a setting for forming task suites. It means that a page will contain the number of tasks that you specify in this setting.

Starting a pool and getting results

  1. Start the pool by clicking .
  2. Track the completion of tasks in the Pool statistics section.
  3. When the pool is completed, launch aggregation of results. To do this, find the Download results button and click  → Dawid-Skene aggregation model next to it.

    In this case, the TSV file with aggregated responses contains the response significance as a percentage — the CONFIDENCE field. The results show how much we can trust the response that the right (or left) picture is better. Learn more about aggregation.

  4. Track the aggregation progress on the Operations page. When the process is completed, click Download.

Troubleshooting

How do I create a task with a selection out of three image options with the paired image comparison?
  1. Use the “Side-by-side image comparison” template.
  2. In the TSV file, specify the links to the compared images.
  3. In the file, create the tasks where all the images will be compared in pairs:
    • Image 1 and Image 2

    • Image 1 and Image 3

    • Image 2 and Image 3
  4. Process the results.

You can also edit the project so that the user sees 3 images at once and selects one of them.

How do I make an image expand to its maximum size on click?

To the component that inserts the image, add the parameters: real-size=true and screenshot=true.

Do I need to convert all the images in the task to the same size or can they be different?
You can use different image sizes.
