Image with area selection

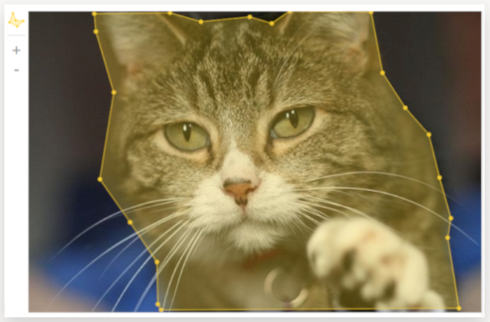

The editor lets you select an area of the image using either a rectangle or an arbitrary polygon:

Adding the editor
If you need to add an image editor without selected objects:
Connect the $TOLOKA_ASSETS/js/image-annotation.js library (click
in the Task interface block on the project page).
Include the
{{field type="image-annotation"
name="<output field name>"
src=<image URL>}}
component in the HTML code of the interface. For example:{{field type="image-annotation" name="result" src=image}}
Copied to clipboardFor a complete list of parameters, see the table.
- Add a field for entering an image link in the input data.
- Add the
result
field with the json type in the output data.
The result
field will be used for a JSON object with the point coordinates. Example:
[{"data":{"p1":{"x":0.472,"y":0.413},"p2":{"x":0.932,"y":0.877}},"type":"rectangle"},
{"data":[{"x":0.143,"y":0.807},{"x":0.317,"y":0.87},{"x":0.511,"y":0.145},{"x":0.328,"y":0.096},{"x":0.096,"y":0.554}],"type":"polygon"}]
The x and y values are numbers from 0 to 1. Length and width of the image are taken as 1, with the center of coordinates in the upper-left corner of the image.
If you have images with selected objects and you want to upload them to the task:
Connect the $TOLOKA_ASSETS/js/image-annotation.js library (click
in the Task interface block on the project page).
Include the
{{field type="image-annotation"
name="<output field name>"
src=<image URL>
annotations=<input field name>}}
component in the interface HTML code. Example:{{field type="image-annotation" name="result" src=image annotations=polygon}}
Copied to clipboard- Add the following in the input data:
- A field for entering an image link.
The
polygon
field with the json type to pass the coordinates of the selected area.
- Add the
result
field with the json type in the output data. A field for recording results is required for this component. If the performer edits the selected area, the updated coordinates are recorded there.
- Parameters
-
Parameter
Description
Required
Default value
type
Field type: image-annotation
, the image area selection editor.yes
no
name
Attribute for the output data field. Contains the output field name.
yes
no
src
Image URL. Supported values:
URL from the task input data. For example, from the field with the
url
:src=image
ID.Direct link. The HTTPS protocol is recommended. For example,
src="https://mywebsite.ru/img1.png"
.Relative link.
yes
no
annotations
Attribute for the input data field. Contains the input data field name. Here you can provide the selection coordinates for further editing. The data format is a JSON object.
no
no
Parameter
Description
Required
Default value
type
Field type: image-annotation
, the image area selection editor.yes
no
name
Attribute for the output data field. Contains the output field name.
yes
no
src
Image URL. Supported values:
URL from the task input data. For example, from the field with the
url
:src=image
ID.Direct link. The HTTPS protocol is recommended. For example,
src="https://mywebsite.ru/img1.png"
.Relative link.
yes
no
annotations
Attribute for the input data field. Contains the input data field name. Here you can provide the selection coordinates for further editing. The data format is a JSON object.
no
no
Shortcuts
- C closes a polygon connecting the first and last points with a line.
- D deletes the selected point, selected object, or last point when creating a polygon.
- Arrows move the selected point. With Alt pressed, they move it slower. With Alt+Shift pressed, they move it faster.
- Tab moves from the selected point to the next one.
- Shift+Tab moves from the selected point to the previous one.
Tell performers about keyboard shortcuts in the instructions to speed up task completion.
Selection tools
By default, the polygon tool is added to the task interface.
You can change the tool set:
.image-annotation-editor__shape-rectangle { display: none; }
Copied to clipboard
.image-annotation-editor__shape-polygon { display: none; }
Copied to clipboard
.image-annotation-editor__shape-rectangle { display: none; }
Copied to clipboard
Annotation
To use annotations, insert one of these examples into the JS block:
exports.Task = extend(TolokaHandlebarsTask, function (options) { TolokaHandlebarsTask.call(this, options); }, { onRender: function() { var field = this.getField('result'); var editor = field.getEditor(); editor.annotationInterface = field.createAnnotationInterface({ createInterfaceElement: function() { this._input = document.createElement('input'); this._input.addEventListener('input', function() { this._shape.annotation = this._input.value; }.bind(this)); return this._input; }, onShow: function(shape) { this._shape = shape; this._input.value = shape.annotation; } }); }, onDestroy: function() { // Task is completed. Global resources can be released (if used) } }); function extend(ParentClass, constructorFunction, prototypeHash) { constructorFunction = constructorFunction || function () {}; prototypeHash = prototypeHash || {}; if (ParentClass) { constructorFunction.prototype = Object.create(ParentClass.prototype); } for (var i in prototypeHash) { constructorFunction.prototype[i] = prototypeHash[i]; } return constructorFunction; }
Copied to clipboard
var listOption = [["Animals","Cat","Dog","Bird"]]; var listValues = [ ["-","Cat","Dog","Bird"] ]; var bigListValues = []; for(var i=0;i<listValues.length;i++){ for (var j=0;jlistValues[i].length;j++){ if(j != 0){ bigListValues[bigListValues.length] = listValues[i][j]; } } } exports.Task = extend(TolokaHandlebarsTask, function (options) { TolokaHandlebarsTask.call(this, options); }, { onRender: function() { var field = this.getField('result'); var editor = field.getEditor(); editor.annotationInterface = field.createAnnotationInterface({ createInterfaceElement: function() { this._select = document.createElement('select'); for(var j=0;j<listOption.length;j++){ var listGroup = listOption[j]; var valuesGroup = listValues[j]; var optgroup = document.createElement("optgroup"); optgroup.setAttribute('label', listGroup[0]); for (var i = 1; i listGroup.length; i++) { var option = document.createElement("option"); if (i == 0) { option.setAttribute('disabled', 'disabled'); } option.value = valuesGroup[i]; option.className = "seletOpt"; var oText = document.createTextNode(listGroup[i]); option.appendChild(oText); optgroup.appendChild(option); } this._select.appendChild(optgroup); } this._select.addEventListener('change', function() { this._shape.annotation = this._select.value; _.each(bigListValues, function(value) { this._polygonEl.classList.remove(value.toLowerCase()); }.bind(this)); this._polygonEl.classList.add(this._select.value.toLowerCase()); }.bind(this)); return this._select; }, onShow: function(shape, el) { console.log("shape: ", shape) console.log("el: ", el) this._shape = shape; this._select.value = shape.annotation; this._polygonEl = el; } }); }, onDestroy: function() { // Task is completed. Global resources can be released (if used) } }); function extend(ParentClass, constructorFunction, prototypeHash) { constructorFunction = constructorFunction || function () {}; prototypeHash = prototypeHash || {}; if (ParentClass) { constructorFunction.prototype = Object.create(ParentClass.prototype); } for (var i in prototypeHash) { constructorFunction.prototype[i] = prototypeHash[i]; } return constructorFunction; }
Copied to clipboard
Get the object of the
getEditor()
editor and thegetField('result')
annotation interface in theonRender()
method:var field = this.getField('result'); var editor = field.getEditor();
Copied to clipboard- Set the annotation interface implementation in methods:
createInterfaceElement()
— Calls the DOM element of the interface (called once during initialization).onShow(shape, options)
— Shows the annotation interface when the performer hovers the mouse over the selected area. Gets JSON with the coordinates of the polygon points as input. In this JSON, you can write the annotation that the performer entered.
To let the performer add an annotation to the selected area or select it from the list, you need to add an interface element to the task (for example, a text field or a drop-down list):
Performer interactions with the editor cause the following events:
shape:start
— Starts area selection.shape:finish
— Completes area selection.shape:cancel
— Deletes a point.shape:remove
— Deletes the selection.
To subscribe to these events:
editor.on('shape:start', function() { /* event handling */ });
Copied to clipboard
