Agentic RAG systems for enterprise-scale information retrieval

A new class of retrieval pipelines is turning large language models from responding assistants into task-driven AI agents, built for complex, high-stakes environments.

Retrieval-augmented generation (RAG) is meant to meet the growing demands enterprises place on their AI systems. Agentic RAG systems must handle nuanced queries, perform multi-step tasks, and integrate with internal tools, enabling large language models to act as autonomous AI agents within complex workflows.

These systems are already moving from prototype to production. Frameworks like LangChain’s LangGraph, LlamaIndex’s AgentQueryEngine, and Microsoft’s AutoGen enable developers to build agentic RAG pipelines where LLMs control retrieval, reasoning, and tool usage in an iterative loop.

Enterprises are beginning to deploy these capabilities at scale: Morgan Stanley has developed retrieval-based AI agents for internal financial research workflows, PwC is applying agentic RAG patterns in tax and compliance automation, and ServiceNow uses multi-step retrieval agents for IT service management.

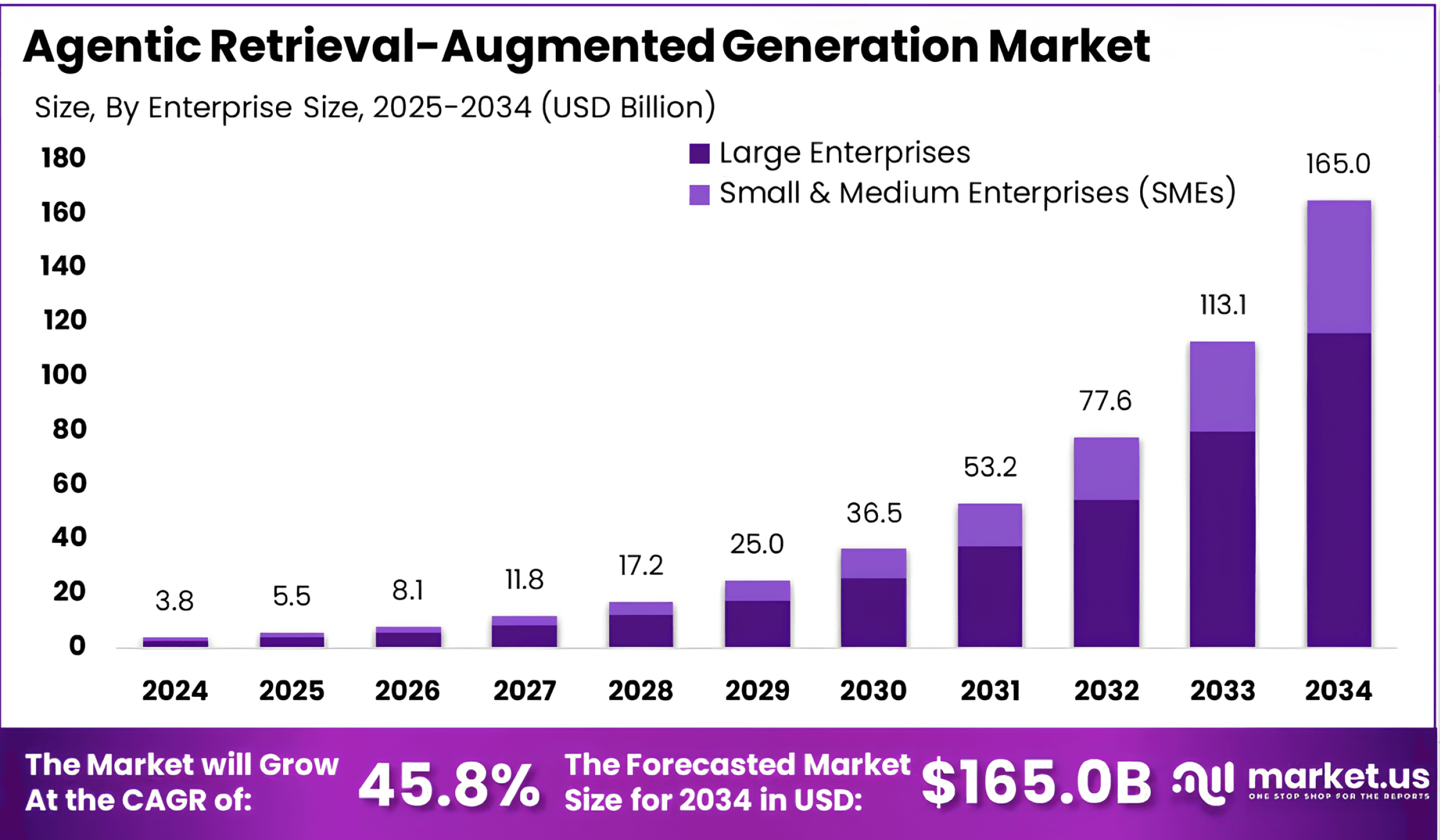

The Agentic RAG market is projected to grow from $3.8B in 2024 to $165B by 2034, driven by enterprise demand for adaptive, intelligent AI systems. Source: Market.us

Agentic RAG systems are not static chatbots responding to one-off prompts—they are task-solving AI agents that reason, fetch up-to-date information, invoke tools, and adapt over multiple steps. They represent a significant shift in how LLMs and retrieval-augmented generation are integrated into enterprise systems.

The Rise of Retrieval-Augmented Generation (RAG) for Large Language Models

Retrieval-Augmented Generation (RAG) emerged as a scalable solution to one of the most critical challenges in deploying large language models (LLMs): hallucination. While many models can produce fluent and useful language outputs, they are prone to fabricating facts, especially when asked about niche subjects, internal company data, or fast-changing relevant information.

The illustration shows that the set of ideal LLMs is not attainable. Source: Hallucination is Inevitable: An Innate Limitation of Large Language Models

This limitation is unacceptable in production environments where factual precision is non-negotiable, like healthcare decision support, legal analysis, enterprise search, compliance documentation, or customer service chatbots. Getting the wrong answer in these domains isn’t just an inconvenience—it can be a liability.

RAG addresses this gap by pairing a retriever, typically a dense vector index backed by embedding models, with a generator, usually an LLM.

When a user query is submitted, the system initiates a retrieval process to fetch textual and visual data from an external knowledge base and injects them into the model's prompt context. The model then uses these grounded passages from external knowledge and relevant data to generate a context-aware, accurate response.

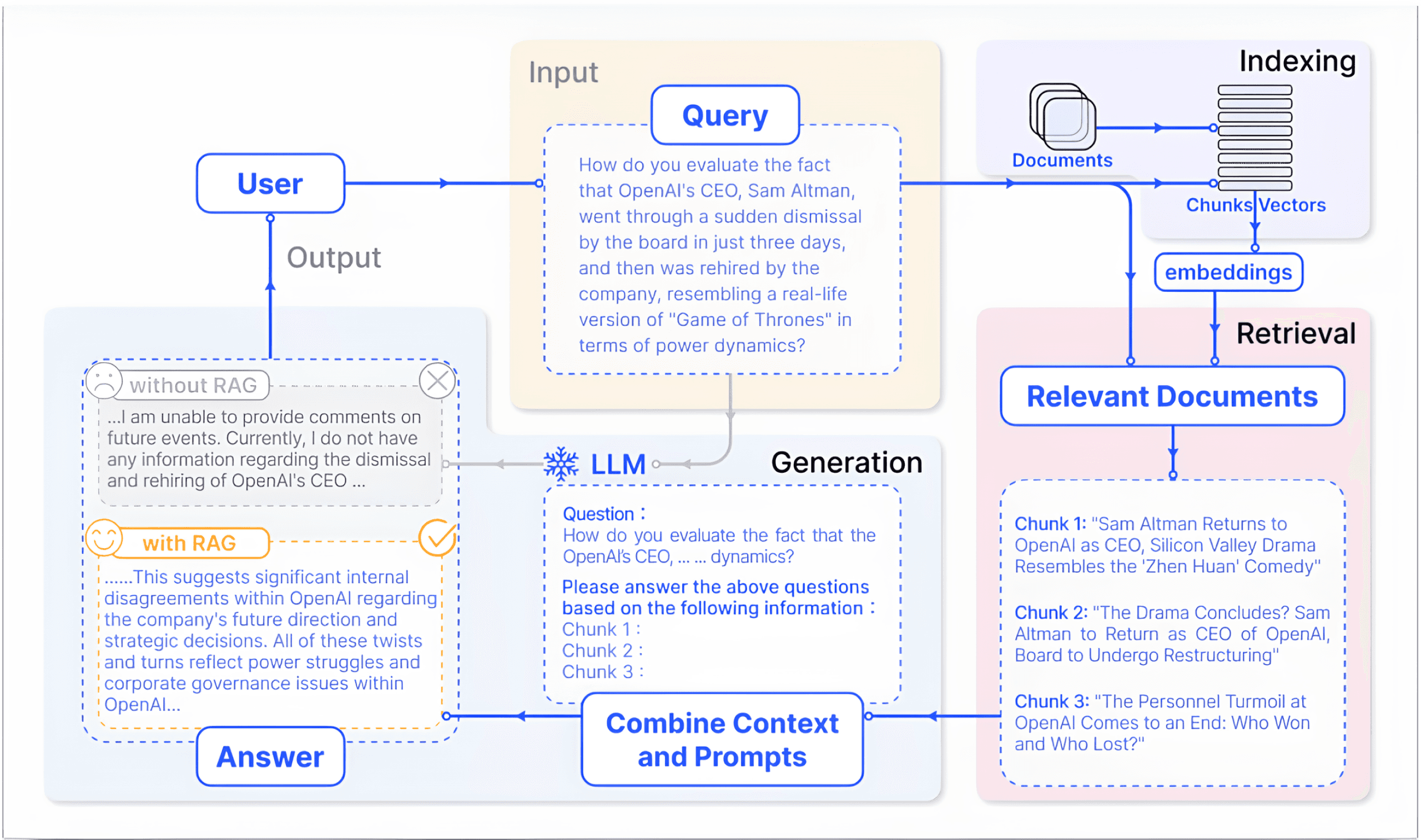

An example of the RAG process applied to question answering. Source: Retrieval-Augmented Generation for Large Language Models: A Survey

Over the past two years, this RAG pipeline architecture has become the dominant deployment pattern for enterprise LLM applications. Why? Because it:

• Mitigates hallucination without fine-tuning.

• Offers transparency by showing the diverse sources used to produce an answer.

• It allows flexible updates—just reindex documents, and there is no need to retrain.

• Improves reliability and governance in regulated industries.

Examples of real-world use cases include:

• Support automation: LLMs answer questions using company-specific documentation and product manuals.

• Internal knowledge assistants: Chat interfaces over Confluence pages, Slack threads, or Notion docs.

• Legal research: Systems that retrieve case law or contract clauses and summarize them into legal memos.

• Enterprise search: Domain-specific embeddings powering semantic search and surfacing semantically relevant and up-to-date information across siloed corpora.



Rag application overview. Source: The Practical Applications of Retrieval-Augmented Generation in AI

Frameworks such as LangChain, Haystack, LLMWare, LlamaIndex, and OpenAI's Retrieval Plugin have made RAG easy to implement with existing LLM APIs. Open-source vector databases like Weaviate, Qdrant, and FAISS enable fast and scalable document retrieval at enterprise scale.

Why Traditional RAG Falls Short

But traditional RAG frameworks have a significant limitation: they’re static. The retriever is called once, the generator responds once, and the task is complete, whether or not the answer is correct, complete, or even relevant. There’s no iteration, reasoning loop, planning, or memory.

Traditional RAG systems, relying solely on a single retrieval step, cannot ask themselves whether the retrieved context is sufficient or needs to repeat or adapt the retrieval process to look for more information. They cannot call external tools, consult APIs, or clarify ambiguous queries. Many enterprise tasks and complex queries don’t fit this “retrieve-then-complete” mold. Think of:

• Comparing documents and summarizing their key differences in response to a user query.

• Following multi-step procedures, like regulatory reporting workflows.

• Triage tasks that require classification, summarization, and routing to different endpoints.

• Personalized user interactions over multiple sessions.

These aren’t one-step tasks. They require a system that can reason, plan, fetch additional information when needed, invoke tools such as calculators or web searches, and adapt to user feedback.

Practical Failures

These RAG pipeline shortcomings are not just theoretical. In an empirical study of AI agent-powered retrieval-augmented generation (RAG) deployments across research, education, and biomedical domains (Barnett et al., 2024), engineers documented seven recurring failure points—including failure to retrieve documents, failure to include correct chunks in context, and generation errors despite having the right retrieved data and inputs.

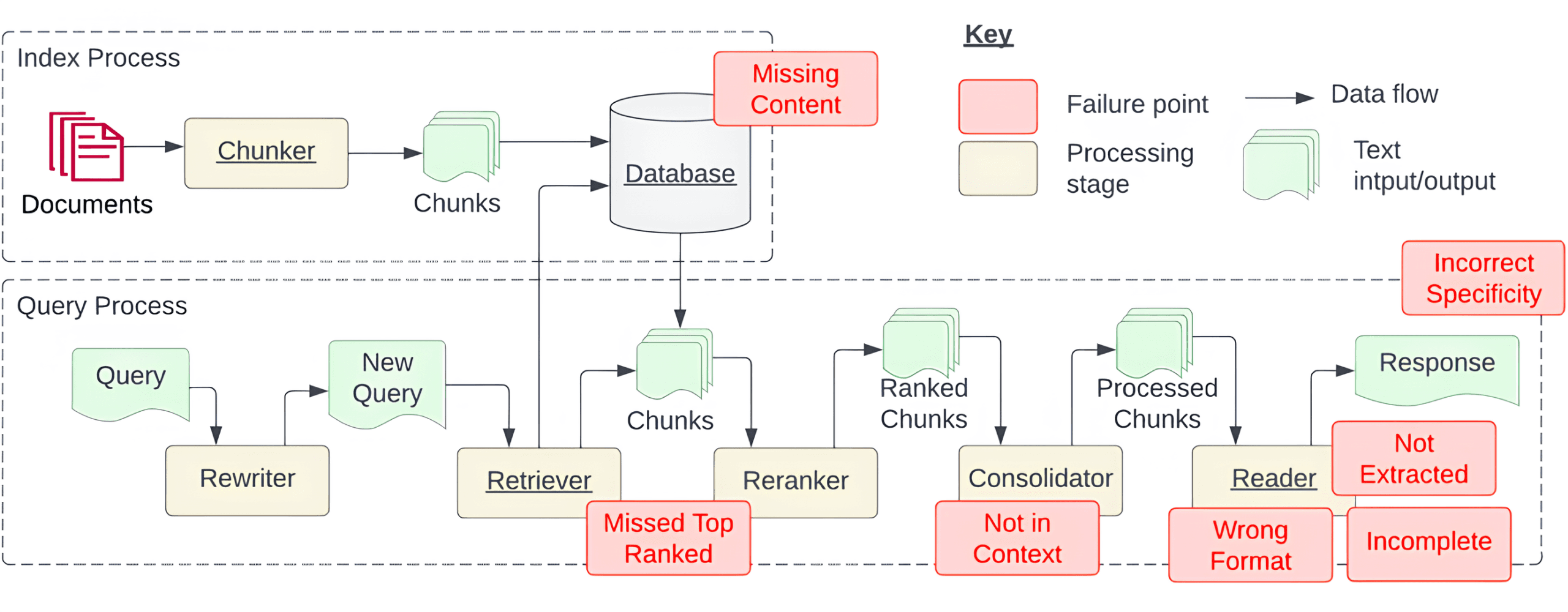

Common failure points in traditional Retrieval-Augmented Generation systems. Source: Seven Failure Points When Engineering a Retrieval Augmented Generation System

These issues arose even when using carefully engineered RAG pipelines, underscoring that traditional RAG often breaks under real-world conditions where task complexity exceeds what can be answered with a single-pass user query retrieval and generation.

What Is Agentic RAG and How Do AI Agents Power It?

Agentic RAG expands the traditional RAG pipeline into a dynamic, iterative system where an LLM can plan reasoning, call external tools, and refine its actions based on intermediate results.

Rather than retrieve-once, generate-once, Agentic RAG systems emulate a workflow: decide what to do, gather context, reason through it, and act again if needed—mirroring how a human analyst or assistant would work.

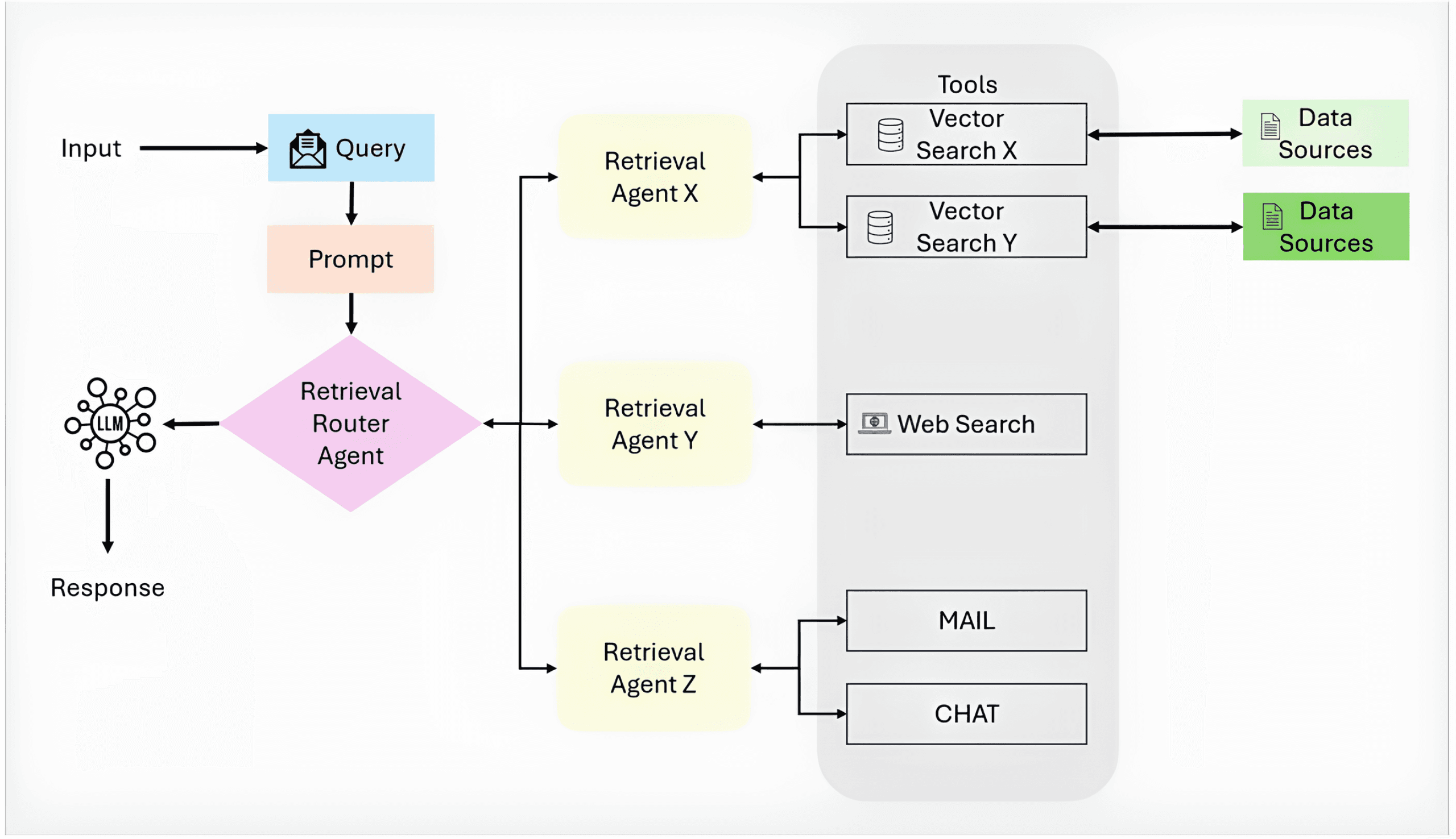

An Overview of Single Agentic RAG system. Source: Agentic Retrieval-Augmented Generation: A Survey on Agentic RAG

Several high-profile releases and prototypes illustrate this shift. OpenAI’s GPTs (custom agents) and Function Calling APIs laid the groundwork, while LangChain’s LangGraph, LlamaIndex’s AgentQueryEngine, and Microsoft’s AutoGen toolkit formalized reusable agentic RAG templates.

Companies like Morgan Stanley use retrieval agents in production over internal financial research. PwC deploys agents for tax and compliance use cases. ServiceNow applies multi-turn RAG architectures for IT workflows, incorporating planning and retrieval logic that closely resemble agentic RAG designs. These aren’t just chatbots—they’re LLMs acting as task-solving agents inside enterprise workflows.

Core Components of Agentic RAG and Intelligent Agents

Agentic RAG systems operate through a layered combination of architecture and behavior. At the core are six essential system components, supported by cognitive-like reasoning patterns that enable dynamic, multi-step orchestration.

Architectural Components

The foundation of an Agentic RAG system consists of modular components that the LLM agent coordinates during execution.

Agent

At the center is the AI agent—typically a large language model—which generates responses and orchestrates a whole reasoning pipeline. It decides when to retrieve, what tools to invoke, how to plan steps, and when to revise its approach.

Retriever

The retriever is still critical but becomes dynamic in agentic systems. Instead of a single static call, the AI agent can trigger multiple retrievals, adjust queries mid-process, or use multi-hop strategies to gather precise context. These often run on vector databases like FAISS or Weaviate.

Generator

While often the same LLM as the agent, the generator role involves composing natural language outputs, intermediate summaries, or tool inputs. In Agentic RAG, this can happen multiple times throughout a task, not just once at the end.

Tools and APIs

RAG agents can integrate external functionality such as calculators, pricing APIs, external knowledge bases, SQL engines, or even full application backends. Traditional RAG systems typically perform a single retrieval pass without dynamic tool calls; Agentic RAG introduces flexible tool usage mid-process. OpenAI’s function calling and LangChain’s toolkits both support these workflows.

Planner

For complex tasks, an Agentic RAG framework includes a planning module that decomposes a goal into steps via prompt-based chain-of-thought, a logic graph (as in LangGraph), or multi-agent delegation (as in AutoGen). Planning ensures coordination and enables recovery from partial failures.

Memory

Short-term memory captures results across steps, allowing contextual chaining and iterative refinement. Long-term memory stores user history, prior interactions, or persistent context across sessions—essential for personalization, multi-turn tasks, and coordinating multi-agent systems.

In practice, different frameworks may label these components more granularly. For example, LangGraph uses terms like orchestrator, synthesizer, or aggregator to describe specific agent roles within a control flow graph.

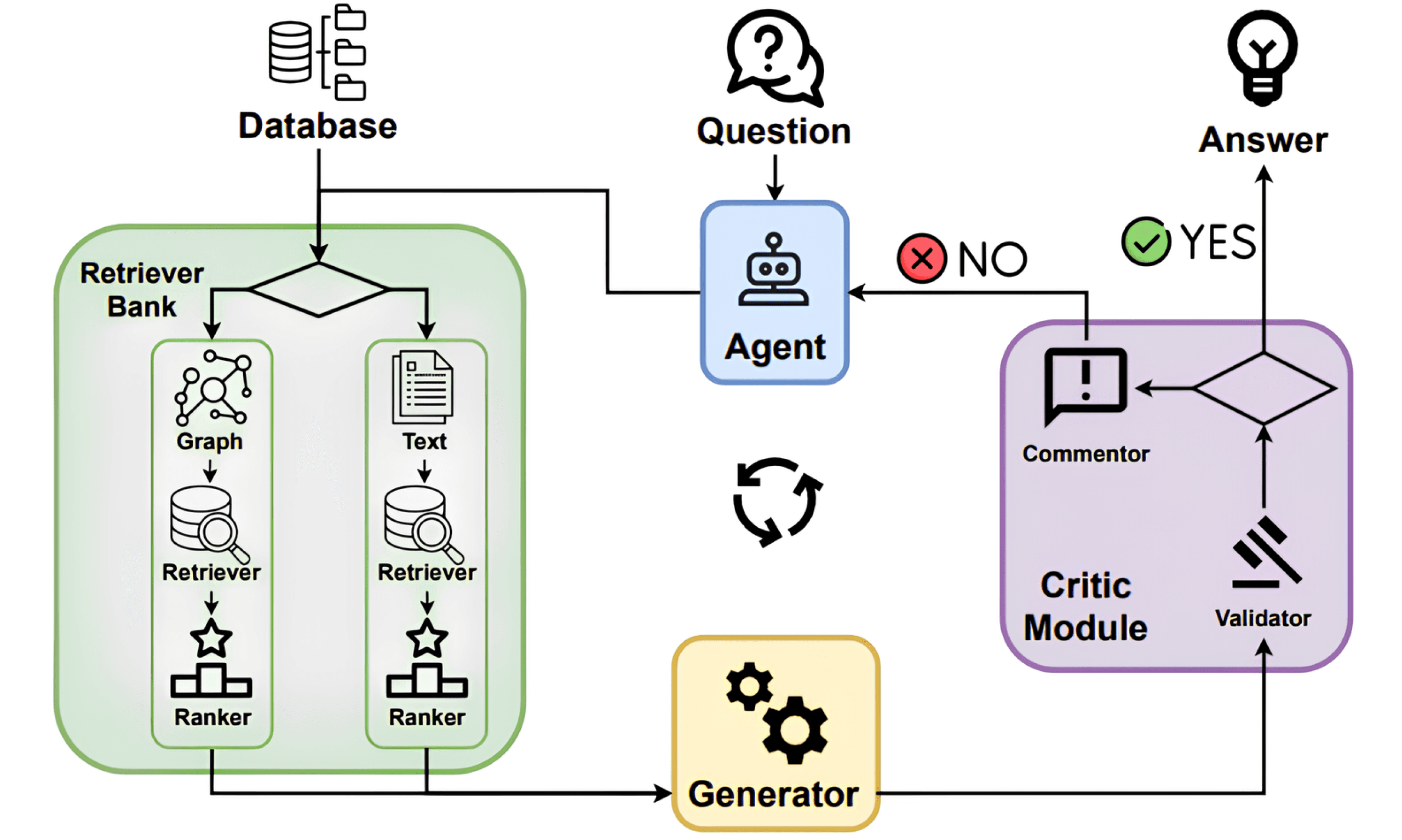

This framework illustrates key Agentic RAG components—an LLM-based agent controlling a retriever bank, generator, and critic module to iteratively answer hybrid queries using both text and graph knowledge. Source: Agent-G: An Agentic Framework for Graph Retrieval Augmented Generation

While naming varies across implementations, these roles map closely to the key features and core functions described here: planning, retrieving, generating, and coordinating tools. What defines Agentic RAG is not the terminology, but the architectural ability to reason, adapt, and act through modular, iterative workflows.

Agentic Reasoning Patterns

In addition to modular components, the Agentic RAG pipeline is defined by the reasoning patterns it uses—patterns largely absent in traditional RAG systems. These patterns guide the agent’s behavior and structure more intelligent workflows.

Reflection

AI agents can reflect on their outputs, critique past decisions, and revise or retry parts of a task. This may be prompt-driven or implemented as part of a loop (e.g., Reflexion, Self-Refine). Reflection improves robustness in tasks like code synthesis, QA, and summarization, especially when powering a summary query engine that reasons over retrieved data.

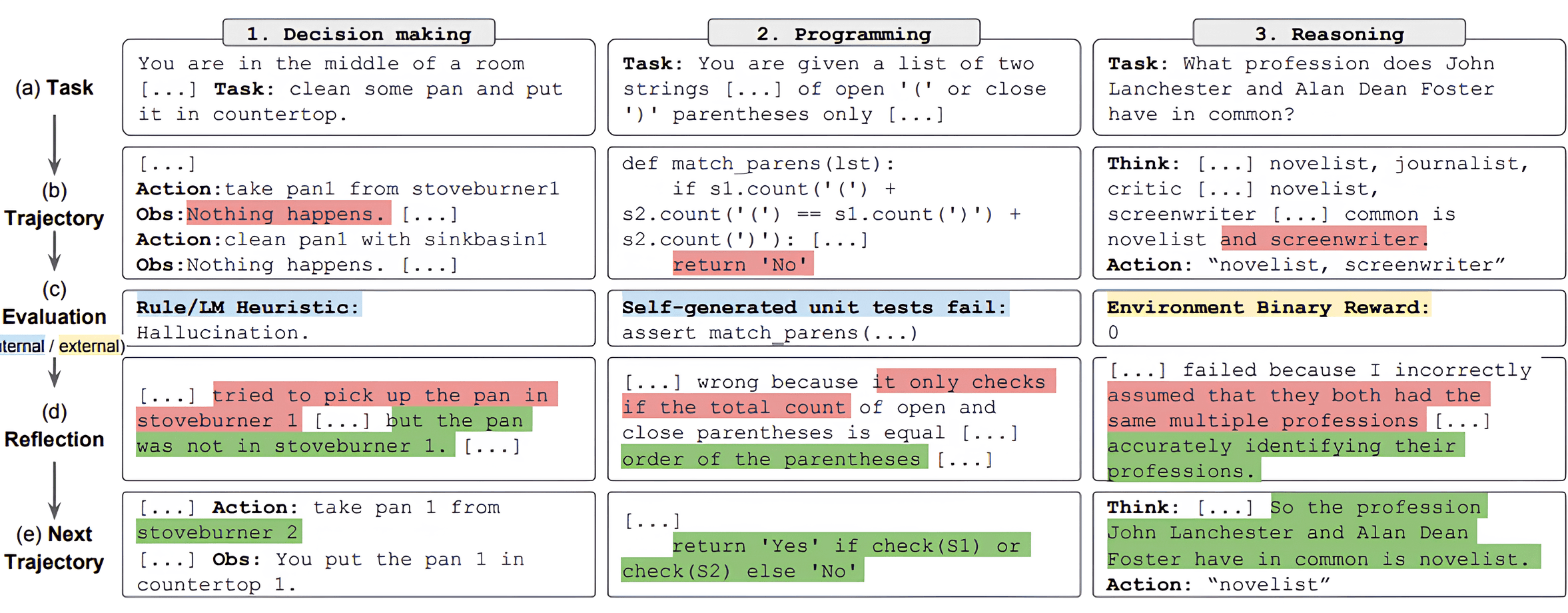

Reflection working on decision-making, programming, and reasoning tasks. Source: Reflexion: Language Agents with Verbal Reinforcement Learning

Planning

Rather than respond reactively, AI agents proactively plan task execution to address complex queries and multi-step reasoning. They define subtasks, set execution order, and adapt steps based on observed outcomes. LangGraph and AutoGen both support this structured execution.

Tool Use

Agentic RAG extends traditional RAG by allowing mid-process tool calls—fetching additional documents, querying a knowledge base, or performing calculations. Tools are invoked conditionally as needed, not pre-scripted.

Multi-Agent Collaboration

Some Agentic RAG systems distribute responsibilities across specialized AI agents. A planner might assign subtasks, an executor processes retrieved information or performs external tool calls, and a critic evaluates the result.

Multi-agent RAG systems improve scalability and fault tolerance. AutoGen’s GroupChat and AgentVerse explore this pattern in depth and provide toolkits for developing multi-agent systems.

Multi-Agent orchestration in Agentic RAG workflows. Specialized agents collaborate to plan, retrieve, execute, and critique tasks in a coordinated pipeline. This modular approach improves reasoning quality, error recovery, and task scalability. Source: Agentic Retrieval-Augmented Generation: A Survey on Agentic RAG

In practice, these reasoning patterns are not mutually exclusive. Many agentic RAG systems combine two or more, such as planning with tool use, or reflection with memory, to handle real-world complexity.

Some agents dynamically choose which pattern to apply based on task difficulty or feedback. The power of Agentic RAG lies in this composability: patterns can be layered, adapted, or switched mid-execution, depending on the system’s design and use case.

Key Features and Benefits of Agentic RAG

Agentic RAG pipeline significantly extends the capabilities of traditional RAG systems by enabling LLMs to reason, plan, adapt, and act across multi-step workflows. Below are four key advantages that make Agentic RAG a critical evolution for enterprise-scale AI.

More Accurate and Relevant Answers

Agentic RAG systems reduce hallucinations by verifying and refining their retrieved context iteratively. Instead of relying on a single pass, the agent can reflect on its initial response, evaluate errors or gaps, and rerun parts of the reasoning process. This enables better factual alignment and more accurate responses, especially in scientific research, law, and technical documentation.

Example

In benchmark evaluations on multi-hop QA datasets like HotpotQA and MuSiQue, the Self-Refine method enhanced response accuracy by 10–18% over baseline GPT-3, simply by introducing structured critique-and-revision loops.

The Self-Refine method prompts a language model to generate an answer, critique it, and revise based on its feedback before giving the final response. This reflection pattern is key to improving factual consistency in multi-hop or high-stakes tasks. Source: Self-Refine: Iterative Refinement with Self-Feedback

Dynamic Problem-Solving Across Multiple Steps

Agentic RAG systems can break down complex queries into sequential subgoals and manage dependencies. The agent dynamically decides what relevant information needs to be retrieved, whether external tools should be invoked, and how to analyze data and intermediate results to affect the overall plan.

Example

Consider an internal audit RAG agent at a multinational firm. The system analyzes multiple data sources (policy files, transaction logs, exception reports), retrieves relevant entries from each, runs conditional logic against compliance thresholds, and generates a preliminary risk summary. The intelligent agent uses vector search and structured finance APIs to retrieve and process relevant information in coordinated steps, none of which static RAG could handle alone.

Adaptability to User Needs and Environmental Inputs

Agents adjust to missing context, reformulate user queries, or reroute execution paths based on runtime insights and the quality of retrieved information—all without human prompting.

Example

In a prototype for electronic health records (EHR) assistance, an LLM agent interprets physician queries and adapts its strategy if a lab result is outdated, missing, or misfiled. It switches from structured EHR data to clinical notes, reformulates the query, and calls a summarizer, adapting based on what’s available at runtime and user clarification.

Improved Performance on Complex and Multi-Turn Tasks

Because Agentic RAG systems include memory (both short- and long-term), they handle multi-turn conversations gracefully. Autonomous agents can track prior decisions, maintain context across user sessions, and build workflows that span multiple input-output cycles.

Example

A legal research assistant built using LangGraph maintains a session across turns where a paralegal iteratively requests contract clause comparisons, follow-up citations, and a jurisdictional filter. Such a system remembers the prior queries, avoids re-retrieving the same documents, and composes a structured memo within a persistent session.

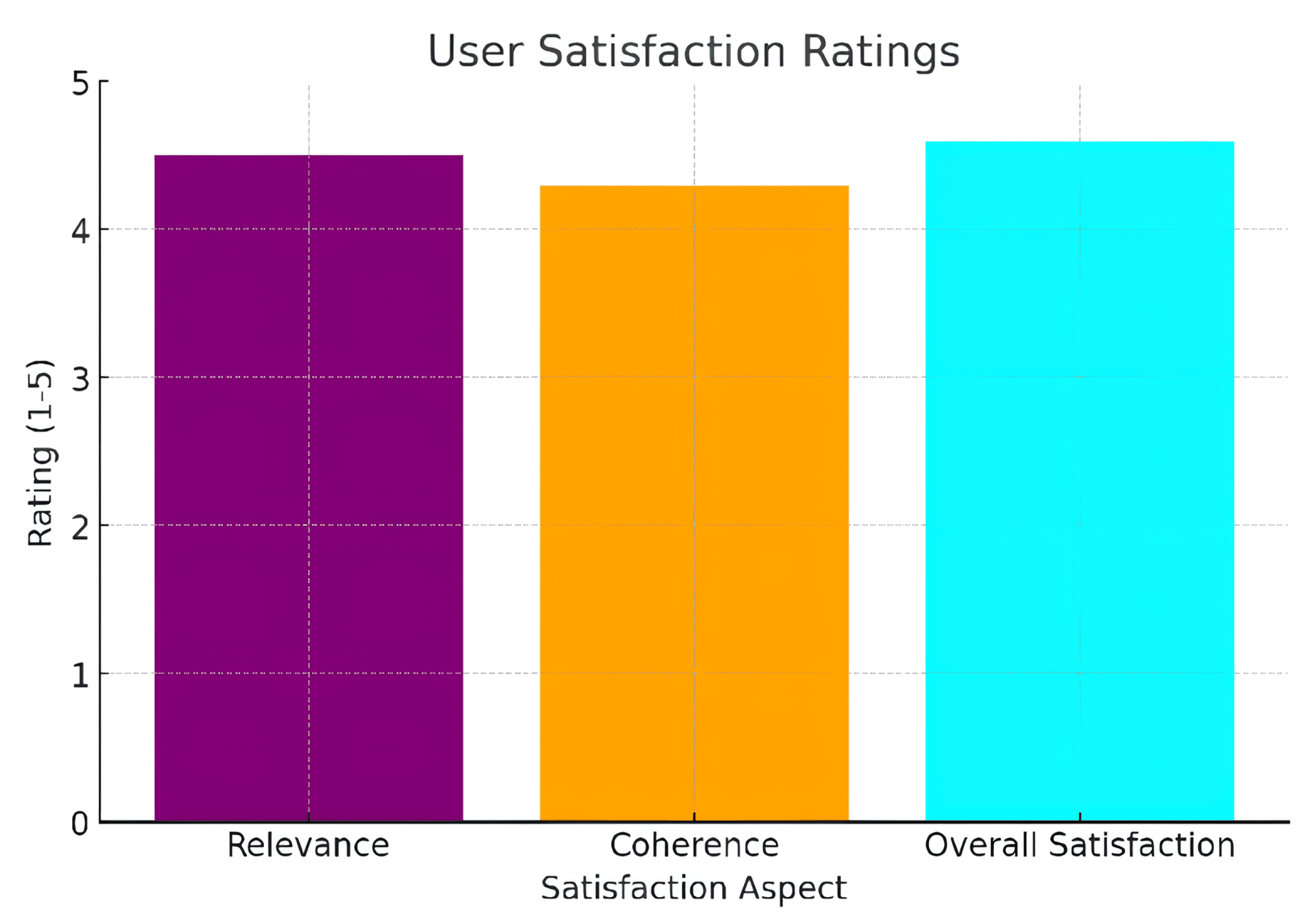

Agentic RAG system user satisfaction ratings based on the feedback from 500 survey participants. Source: Agentic RAG Systems for Improving Adaptability and Performance in AI-Driven Information Retrieval

These benefits are not just theoretical. They’re enabling a new generation of intelligent systems in finance, healthcare, legal services, and enterprise automation, where precision, iteration, and adaptability are essential for production-grade performance.

Challenges and Considerations When Deploying RAG Agents

Despite Agentic RAG's advantages, deploying these systems at scale is far from turnkey. Additional complexity comes with every layer of autonomy—retrieval, planning, and tool use. What looks elegant in a LangChain notebook can fall apart under real-world latency budgets, flaky APIs, or unclear reasoning loops.

Below are the most pressing challenges teams face when moving from demos to production—and how some organizations are addressing them.

1. Latency and Compute Overhead

Multi-step reasoning, efficient retrieval, and mid-process tool calls don’t come cheap. Every agentic step adds tokens, compute time, and latency, especially when external APIs or retries are involved. This might be tolerable in document review or research, but the user notices friction in high-volume support chat or search UX.

Mitigation tactics

• Cap multi-step reasoning depth. Limit the number of internal agent steps, such as retries, tool calls, or reflection, to 2 or 3 per task. This prevents runaway loops and keeps response times predictable, especially in user-facing applications like chat or search.

• Pre-cache common retrievals. Cluster historical logs and retrieve relevant documents for high-frequency queries (e.g., “password reset error 403”).
  → ServiceNow’s IT support agents reportedly implement cache-backed retrieval pipelines for recurring incident types.

• Apply reranking before generation. Use lightweight models (e.g., BGE or Cohere rerankers) to prioritize top-k document chunks before passing them to the LLM. This reduces the amount of irrelevant data processed and speeds up final generation.

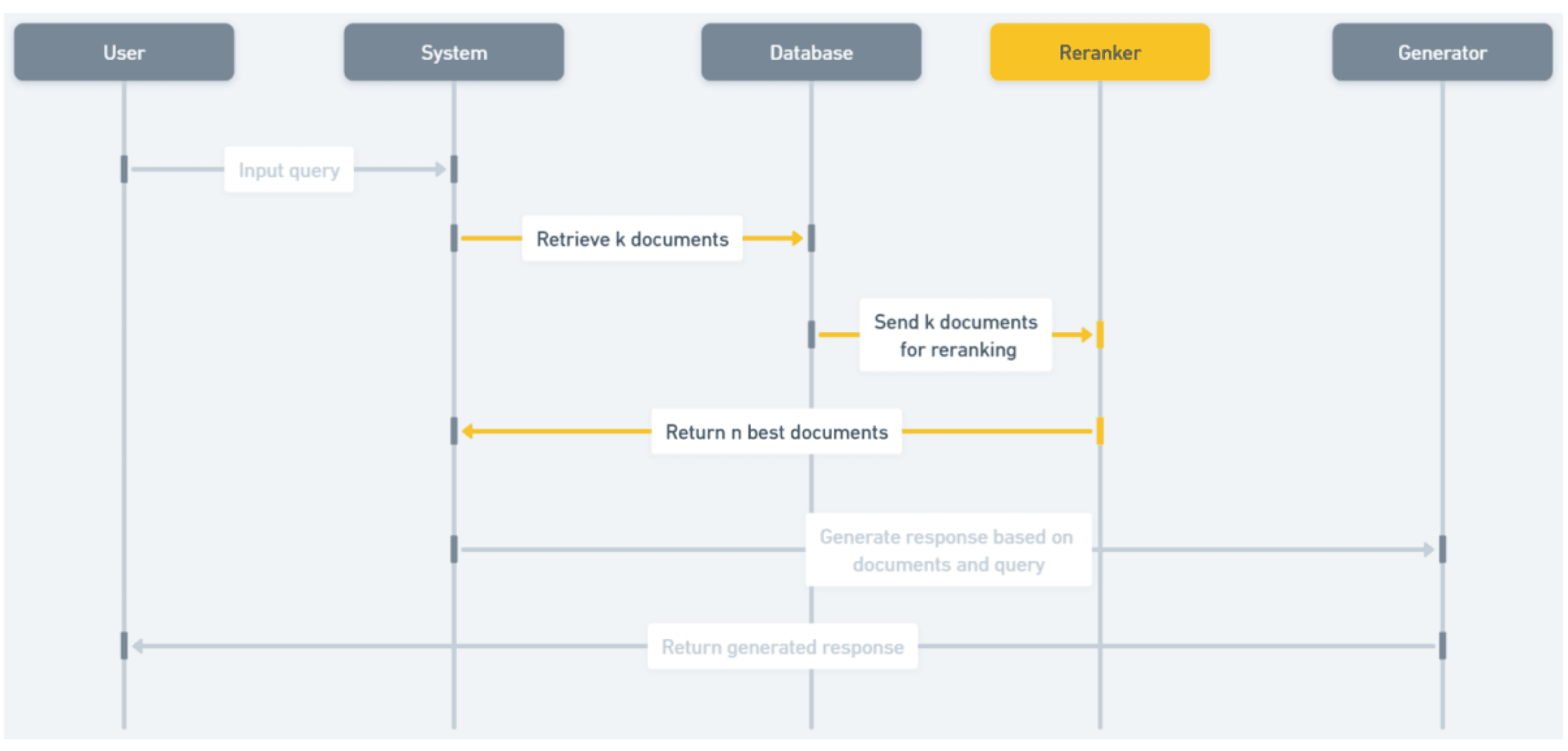

Overview of the reranking process in a RAG system. Source: ARAGOG: Advanced RAG Output Grading

2. Orchestration Complexity

Agentic RAG isn’t one model—it’s a pipeline of interacting subsystems: retriever, planner, tool registry, memory store, output controller. Coordination requires robust state management, retry logic, and failure handling. One misfired tool call or misrouted step can silently derail the result, or cause the agent to reason over incomplete or incorrect retrieved information.

Enterprise responses

• LangGraph, used in Morgan Stanley’s prototypes, abstracts agent flows into graph-based states with retry/fallback paths.

• Microsoft AutoGen’s GroupChat architecture separates agent roles (planner, executor, critic) to avoid bottlenecks in reasoning loops.

• Auto-testing and simulation of reasoning chains are becoming standard during deployment.

3. Tool Fragility and Integration Drift

Agentic RAG’s flexibility is also a liability: it assumes that tools (APIs, calculators, databases) work consistently and return parseable, trustworthy outputs. However, tools change, schemas drift, and agents aren’t immune to malformed inputs, raising reliability issues and potential security concerns if unvalidated data flows through agent pipelines.

Best practices

• Enterprises in regulated environments, like financial services and tax advisors, are increasingly adopting strict tool validation practices. While details are often proprietary, internal LLM frameworks at firms like PwC are believed to include schema enforcement and middleware that ensures tool I/O remains auditable and well-typed.

• LangChain’s tool framework now supports argument schemas, default values, and structured error handling, making it easier to build resilient toolchains. Fallback logic can be added through custom agent logic or graph flows, ensuring one flaky tool call doesn’t break the system.

Failure in the wild

In a prototype financial audit assistant described in engineering forums, an LLM-based agent loop repeatedly triggered a tax rule API that had silently changed its response format. The agent didn’t crash but stalled, failing to complete the audit workflow. The problem wasn’t in the reasoning—it was in the integration. With no validation or fallback schema, the agent accepted malformed data and quietly failed.

This issue has been frequently cited in the LangChain community and GitHub discussions as a common pain point when deploying tool-augmented agents in production.

4. Evaluation Standards Are Still Emerging

Evaluating Agentic RAG systems remains one of the field's most underdeveloped aspects. Traditional NLP benchmarks—like exact match (EM), BLEU, or F1—were built for static question-answering or summarization tasks. They don't account for multi-step reasoning, tool invocation success, or whether the agent made progress toward solving the task.

In Agentic RAG, the question isn’t just “Was the final answer correct?” It’s “Did the agent take the right steps to get there?” and "Did it retrieve the right documents? Use the right tools? Revise when necessary?"

Initiatives working to fill this gap

• OpenAI has introduced evaluation frameworks to score function-calling accuracy and tool response usage.

• HELM and GAIA propose compound benchmarks that combine retrieval precision with downstream task success.

• Anthropic and DeepMind have explored evaluating LLMs not just on final output but also on reasoning trajectory—whether each intermediate step aligns with the goal. This includes structured critiques, step-by-step chain scoring, and error detection across decision paths.

These are promising directions, but none are yet standardized. Many enterprise teams rely on manual audits or synthetic proxy tasks to score agent pipelines.

5. Human Expectations and Control

The more agents feel autonomous, the more users assume they're trustworthy. That’s a problem. Agents that generate fluent, well-cited nonsense or act on insufficient context create a new risk category: confident error at scale.

Mitigation in production

• ServiceNow designed its IT agents with a “show first, act second” principle: users must review and approve planned actions before they execute them.

• In clinical pilots, One Medical only lets note-generating agents surface drafts for physician review—no direct record editing allowed.

Wrapping It Up

None of these challenges is fatal. But they’re real—and growing as agentic systems move from research to regulated environments. Getting them right demands more than prompt engineering. It means designing for system failure, not just system fluency.

Agentic RAG may be the future of enterprise LLM architecture—but only if we build it with skepticism, testability, and clear boundaries baked in.

Tools and Frameworks Supporting Agentic RAG and Knowledge Base Integration

Agentic RAG doesn’t just make language models better at answering questions—it gives them the ability to reason. Instead of “retrieve, then generate,” these frameworks let LLMs decide what to retrieve, when to rerun queries, which tools to call, and how to stitch all of that into coherent action. This isn’t prompt engineering—it’s orchestration engineering.

The frameworks shaping this space are modular, composable, and increasingly aligned with agent-based design patterns. They’re not just extending LLMs—they’re operationalizing them.

LangGraph: Orchestrating Control Flow for Agentic Reasoning

LangGraph, built on LangChain, allows developers to define agent behavior as a control graph. Agents can conditionally branch, retry, call tools, and manage memory across steps while keeping track of task state. It's not a workflow engine bolted onto a chatbot; it’s an execution layer designed for agent autonomy.

LangGraph is already being used to build systems that classify queries, plan multi-step tasks, query knowledge bases, and synthesize retrieved data and intermediate outputs in production pipelines—especially where iteration, branching, and tool orchestration are required.

AutoGen: Coordinating Multi-Agent Systems in Task Pipelines

AutoGen, from Microsoft Research, formalizes multiple agent interaction using planner–executor–critic roles. It supports explicit message passing between agents, memory persistence, and collaborative planning. While it began as a research project, AutoGen now influences enterprise systems requiring structured delegation across specialized sub-agents.

In agentic RAG contexts, AutoGen enables systems where a planner breaks down a task, a routing agent manages flow between components, a retriever agent selects context, an executor composes responses or invokes tools, and a critic revises outputs. It’s a pattern increasingly used for complex workflows, such as legal analysis, multi-hop support tickets, or financial report synthesis.

LangChain: Providing the Building Blocks for Agentic RAG

LangChain isn’t inherently agentic, but it’s the foundational toolkit many agentic RAG systems build on. Its APIs for tool integration, memory modules, retrievers, and callbacks make it ideal for wiring up agent loops. With the right orchestration layer (like LangGraph or custom control logic), LangChain becomes the backbone of agent pipelines that reason across steps.

Use cases include planning-based document review agents, tool-using QA bots, and retrieval agents that refine queries or retry on ambiguity. These agents deliver highly context-aware responses powered by LangChain components under the hood.

Vector Infrastructure: Powering Retrieval in Agent Reasoning Loops

Vector databases—like Weaviate, FAISS, Qdrant, and Pinecone—power the retrieval layer and act as a vector query engine for most agentic systems and modern retrieval systems more broadly. But what sets agentic RAG apart is how that layer is used: not as a one-shot query but as a tool the agent calls and re-calls, with modified intent, through a reasoning loop.

Modern deployments use retriever agents that adjust queries mid-process, perform multi-hop lookups, and apply reranking or feedback weighting on the fly. This dynamic retrieval behavior is central to enabling agents to respond to ambiguity, handle subgoals, and adapt as new context is uncovered.

Enterprise Stacks: Customizing Agentic RAG for Regulated Workflows

Enterprises aren’t just experimenting—they’re building production-ready RAG pipelines. IBM applies agentic RAG to compliance tasks, enabling agents to retrieve, classify, and synthesize across multiple document systems with reasoning loops. ServiceNow uses multi-step retrieval agents to support IT service management, combining RAG with planning and tool integration to auto-resolve complex tickets.

In each case, companies aren't just using retrieval to power answers. They're architecting retrieval and generation pipelines that embed agent behavior to plan steps, invoke tools, rerun failed queries, and explain decisions—often with audit logs and fallback layers for safety. The shift is from question-answering to task completion, with human verification built in.

Final Thoughts: From Retrieval to Reasoning

Agentic RAG development wasn't meant to make chatbots smarter—it was born out of necessity. Enterprises needed systems that could reliably avoid hallucinations in critical cases, handle ambiguity, and adapt in real time, giving context-aware responses. They needed AI that could do more than autocomplete—they needed AI that could work on specific tasks.

What’s emerged is a new class of AI agents that go beyond relying solely on simple retrieval and generation processes, delivering enhanced processing capabilities for enterprise-scale specialized tasks. Agentic RAG pipelines reason across steps, call tools mid-process, re-query when answers fall short, and adapt based on what happens next. RAG agents are not just structured prompts. They’re dynamic, modular workflows—closer to digital analysts than glorified search boxes.

But with autonomy comes complexity. Production-ready Agentic RAG demands orchestration layers, validation logic, tool resilience, and real-world observability. The payoff? Agents that don’t just deliver answers—they complete tasks, integrate across systems, and evolve with feedback.

The foundations for Agentic RAG frameworks are here: LangGraph, AutoGen, memory-augmented LLMs, and retrieval APIs that listen. What’s left is how we build with them. Enterprise LLMs are no longer judged on their demos; they’re judged on their decisions.

Agentic RAG is not the end state, but it’s the strongest blueprint we’ve seen for turning language models into trusted infrastructure.
