RAG evaluation: a technical guide to measuring retrieval-augmented generation

Retrieval-augmented generation (RAG) is adopted across commercial workflows, including enterprise search, customer support, healthcare Q&A, and legal assistants. In production environments, RAG pipelines offer modularity and lower training costs compared to fine-tuning large language models — making them increasingly common in applied AI systems.

A retrieval-augmented generation system pairs a retriever — which fetches documents from a knowledge base — with a language model that generates a response conditioned on that context. This allows the model to surface current or proprietary information without needing to retrain its internal weights. But while RAG systems offer scalable access to external knowledge without full model retraining, they introduce structural complexity — and with it, new failure modes.

RAG assessment requires more than scoring a model's output. It demands disaggregated visibility into retrieval performance, prompt construction, the generation process, and end-to-end system performance. Yet most evaluation frameworks treat these systems as black boxes, applying metrics designed for monolithic language models.

This article outlines how to conduct a rigorous RAG evaluation — breaking down metrics by subsystem, aligning them with business goals, and offering practical guidance for human and automated scoring. It aims to help teams shipping retrieval-augmented generation systems in real-world, high-stakes environments.

What Is RAG and why is RAG evaluation different

Retrieval augmented generation (RAG) is a two-stage architecture. A query first passes through a retriever that identifies related documents from a corpus, then through a generator — typically a large language model (LLM) — that synthesizes a natural-language answer from the retrieved context. Unlike static models, a RAG pipeline changes behavior as documents change, embeddings update, or prompt construction is adjusted.

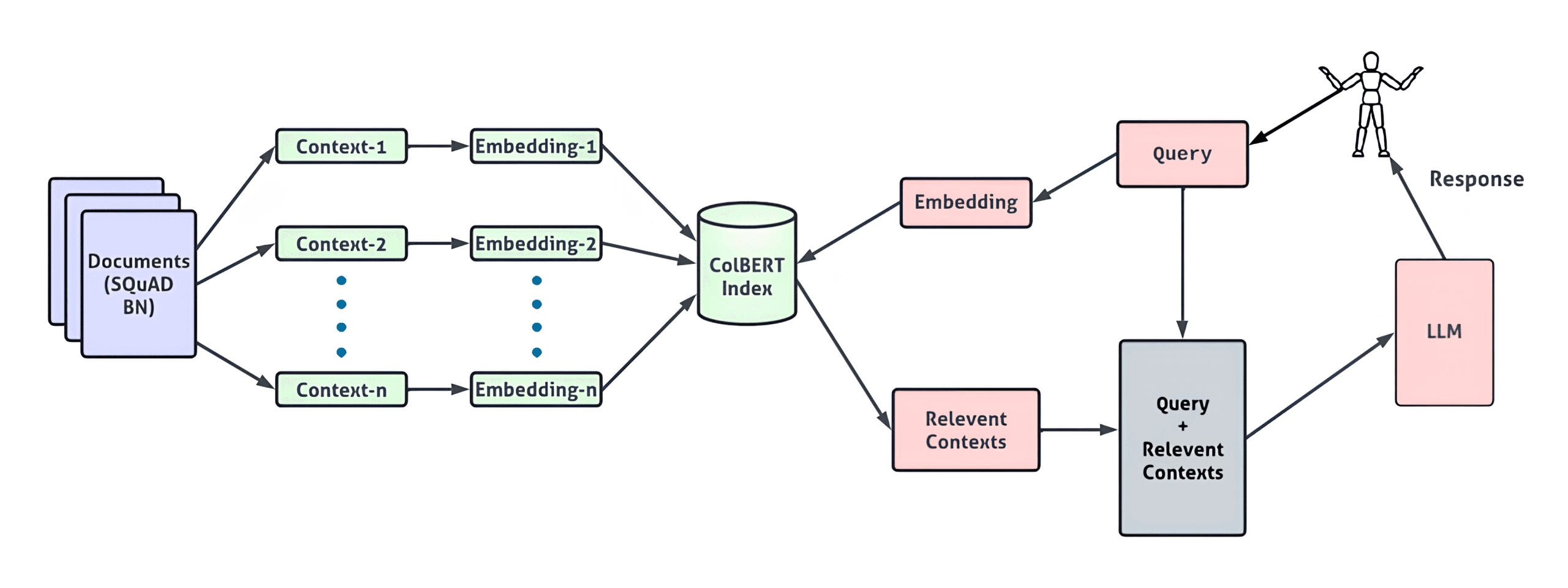

Retrieval-augmented generation pipeline. Source: A Data Science Approach to Calcutta High Court Judgments: An Efficient LLM and RAG-powered Framework for Summarization and Similar Cases Retrieval

This architecture breaks assumptions behind traditional LLM evaluation. You cannot treat the model as the sole function to optimize. RAG systems introduce additional variables — document retrieval precision, context formatting, chunking heuristics, ranking thresholds — that interact non-linearly with generation quality.

Worse, these systems are often tuned with metrics like BLEU, ROUGE, or perplexity, none of which reflect retrieval quality or answer correctness. That’s why a dedicated RAG evaluation strategy is necessary: one that isolates and inspects each subsystem with appropriate tools.

Key components of a RAG pipeline

A retrieval-augmented generation (RAG) system is not a monolith. It’s a chain of discrete, configurable modules. Each can be evaluated independently, and each can fail in ways that degrade the entire system. Treating them as one block obscures actionable insights.

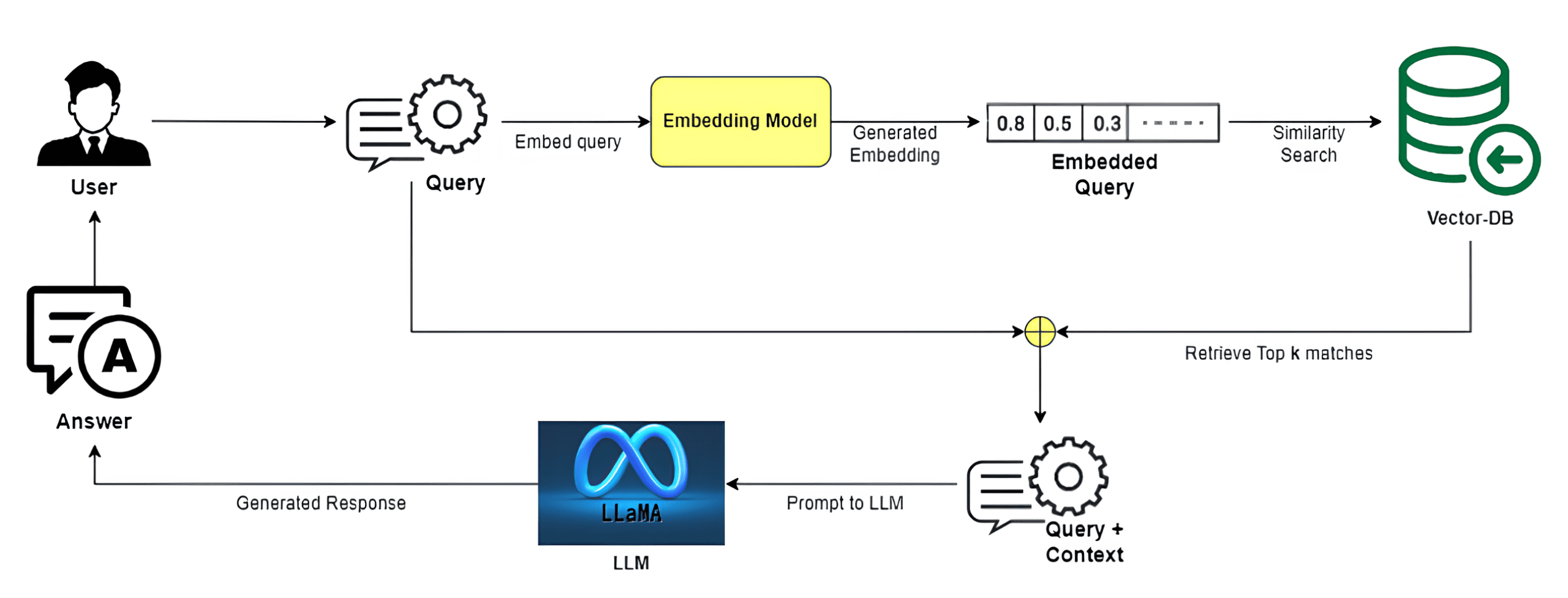

Retrieval-Augmented Generation (RAG) pipeline. The retriever selects relevant documents from the index, which are passed with the query to the generator. Source: Effective Retrieval-Augmented Generation for Open Domain Question Answering in Bengali

Retriever

The retriever is the core element in the retrieval process, locating relevant documents from a knowledge base in response to a user query. In RAG systems, this step is not a simple keyword match: retrieval quality depends on how the query is represented, how the corpus is indexed, and how relevance is scored.

Embedding model selection affects how well the retriever captures semantic meaning in queries and documents — a poor fit can miss obvious matches.

Ranking algorithms decide the order in which retrieved results appear, balancing factors like textual match, semantic closeness, and metadata weights.

Hybrid weighting blends scores from multiple retrieval strategies (e.g., sparse and dense), aiming to improve recall without sacrificing precision.

Small changes in any of these can shift which documents appear in the top ranks and directly influence the quality of the generated answer.

Retriever types include:

Sparse Retrieval — Relies on lexical match. The most widely used algorithm is BM25, a probabilistic ranking function developed in the 1980s as part of the Okapi information retrieval system. BM25 estimates document relevance using term frequency, inverse document frequency, and document length normalization.

• Strengths: Transparent scoring, efficient indexing, and high precision for exact matches.

• Limitations: Poor recall when queries and documents use different wording as synonyms and paraphrases may be missed.

Dense Retrieval — Uses an embedding model to convert queries and documents retrieved into numerical vectors, stored in a vector database. Ranking is based on semantic similarity between these vectors, typically computed via cosine similarity or dot product. This approach allows retrieval even when the query and relevant document share no exact words.

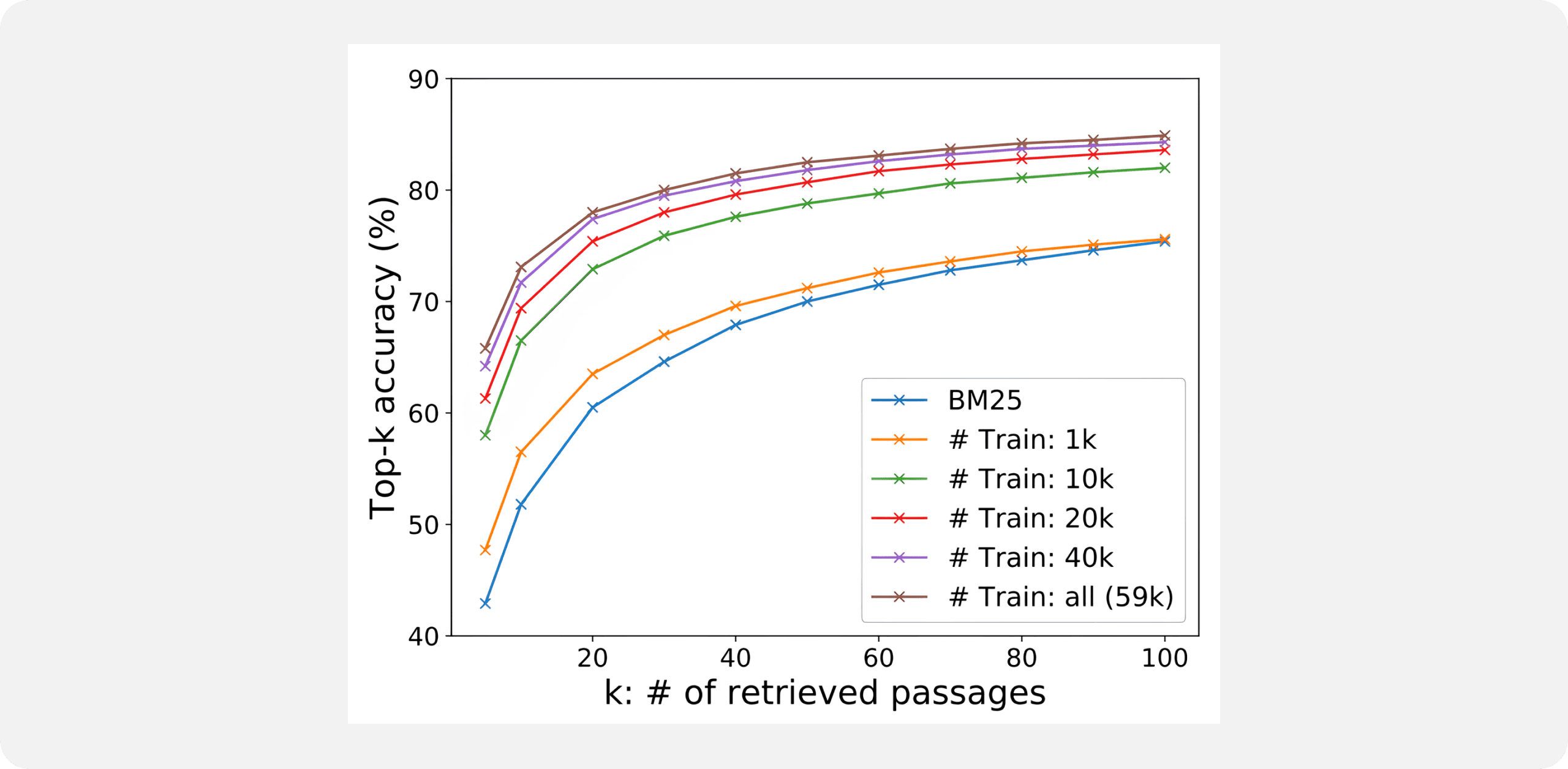

Top-K retrieval success rate for Dense Passage Retriever (DPR) compared to BM25 on the Natural Questions dataset. DPR outperforms BM25 even with as few as 1,000 training examples. Source: Dense Passage Retrieval for Open-Domain Question Answering

• Strengths: Captures conceptual meaning across paraphrases, works in multilingual settings, and handles unstructured text effectively.

• Limitations: Dependent on embedding quality and training data; more compute- and memory-intensive than sparse retrieval.

Hybrid Retrieval — Combines sparse and dense results, often by normalizing and merging their scores. This allows the system to catch exact keyword matches while still surfacing semantically related documents.

• Strengths: Balances lexical precision with semantic coverage, useful for corpora containing both structured data and narrative text.

• Limitations: More complex to implement and tune; may add little value in highly domain-specific corpora where one method already performs well.

In Practice and Evaluation

Hybrid retrieval is widely used in production search systems to balance precise keyword matches with broader semantic coverage. For example, Perplexity.ai’s Hybrid Search combines BM25 keyword retrieval with dense vector search to surface both exact-term matches and semantically related content. This approach improves recall for paraphrased or loosely worded queries while retaining high precision for domain-specific terminology.

Performance is typically measured with:

• Recall@K — The proportion of all relevant documents that appear within the top K retrieved results. For example, Recall@5 of 0.8 means 80% of relevant documents are found in the first five results.

• Precision@K — The fraction of the top K results that are relevant. Precision@10 of 0.9 means 9 out of the top 10 results are correct matches.

• Retrieval accuracy — A binary measure of whether the earliest relevant document appears within a target rank, often the top 1 or 3.

In production, a retriever with high recall but low precision forces the language model to process irrelevant content, increasing the risk of hallucinations. High precision but low recall risks omitting essential evidence.

Embedding model

An embedding model converts text into numerical vectors so that similarity can be computed. Dimensionality determines the granularity of representation: higher dimensions can capture subtle distinctions between meanings but require more storage and computing power.

The training data domain affects how well the model represents specialized terminology — a biomedical embedding model, for example, encodes medical terms more effectively than a general-purpose one. Multilingual support enables direct comparison of text in different languages without translation.

Choosing the right embedding model directly affects semantic similarity scoring, search performance, and overall RAG system performance.

In practice and evaluation

Domain-specific embeddings can substantially improve retrieval quality. For example, PubMedBERT trained on biomedical literature produces embeddings that capture medical terminology more effectively than general-purpose models — making it a strong candidate for dense retrieval in clinical or research search systems.

Evaluation typically involves:

• Semantic similarity score — Measures how closely two text embeddings align in vector space, often using cosine similarity.

• Mean Reciprocal Rank (MRR) — The average of the reciprocal ranks of the first relevant document across queries. Higher MRR means relevant results appear earlier in rankings.

• nDCG (normalized discounted cumulative gain) — Evaluates ranking quality with a higher weight on correctly ordering highly relevant documents.

A poorly matched embedding model can skew similarity scores, ranking semantically irrelevant passages above relevant ones, which distorts retrieval outcomes regardless of downstream ranking or prompt quality.

Index and chunking

An index stores vector and/or keyword representations of documents to enable fast retrieval. Standard indexing systems include FAISS, developed by Meta’s FAIR team, a GPU-optimized library for large-scale approximate nearest neighbor search over billions of vectors; Vespa,  an open source tool supporting hybrid lexical/vector search and machine-learned ranking; and Elasticsearch, which combines keyword indexing with dense vector fields for semantic search.

Chunking strategies determine how documents are split into searchable segments. Smaller chunks improve ranking precision by isolating relevant text but risk losing broader context. Larger chunks preserve context but can reduce the retriever’s ability to match the query precisely. The ideal chunk size depends on the domain, query patterns, and the retrieval component used.

In Practice and Evaluation

In financial QA systems, long-form filings such as SEC 10-K reports are often chunked into ~500-token segments, balancing semantic completeness with ranking granularity.

Key evaluation metrics include:

• nDCG (normalized discounted cumulative gain) — Measures ranking quality by weighting relevant chunks higher when they appear earlier in the results, with the gain discounted logarithmically by position.

• Retrieval effectiveness — Quantifies how well the system surfaces the most relevant segments, often compared against a ground truth set.

• Context recall — Measures whether all necessary information to answer the query appears in the retrieved chunks, regardless of ranking.

Index configuration and chunking decisions directly affect these metrics, making them critical parameters for optimizing document ranking precision in a RAG pipeline.

Prompt constructor

The prompt constructor assembles the query, relevant content, and any additional instructions into the final prompt for the language model. In a retrieval augmented generation pipeline, this step determines how much of the retrieved material is visible to the model and how it is framed.

Prompt design choices include context ordering (e.g., most relevant chunks first), formatting (e.g., separating query and context with system instructions), and truncation strategy when the combined text exceeds the model’s token limit.

A prompt constructor can also apply context filtering, removing retrieved documents that fall below a relevance threshold, and context compression, which shortens retrieved passages to fit within the prompt budget.

In practice and evaluation

In customer-support RAG systems, prompt constructors often prioritize recent or high-confidence retrieved context over older or less specific material.

Evaluation typically focuses on:

• Context recall — The proportion of necessary information from the retrieved materials that appears in the final prompt.

• Context relevance — The proportion of prompt content that is directly useful for answering the query.

• Truncation rate — The fraction of relevant information dropped due to prompt length limits.

Inconsistent or suboptimal prompt construction can introduce noise, omit essential context, or bias the generation stage, leading to degraded accuracy even when retrieval and indexing are optimal.

Language model

The language model in a RAG pipeline generates the final response from the query and the supporting context. Its architecture (e.g., transformer-based), size, and training data influence its retrieval and generation capabilities.

Larger models can integrate more context and handle nuanced instructions, but they also demand higher compute and may be more prone to verbosity or hallucination without strong grounding.

Decoding strategy — such as greedy decoding, beam search, or nucleus sampling — impacts factual precision, diversity, and coherence. Instruction-tuned models often perform better in retrieval-augmented settings because they follow prompts more reliably and integrate retrieved evidence into answers.

In practice and evaluation

In legal-domain RAG systems, models fine-tuned on statutes and case law exhibit higher answer accuracy when combined with domain-specific retrieval, as they better align retrieved content with legal reasoning.

Evaluation focuses on:

• Response quality — Measures fluency, coherence, and appropriateness of tone and style.

• Factual accuracy — Whether claims in the response can be verified against the retrieved context or authoritative sources.

• Answer relevance — Degree to which the response addresses the user’s query, often judged by human raters or automated scoring with reference answers.

Even with perfect retrieval, a language model that fails to ground responses in the provided context can produce incorrect or misleading outputs, undermining the entire RAG pipeline.

Post-processor

The post-processor refines the generated output before it is returned to the end user or downstream system. In a RAG workflow, this can involve formatting (e.g., converting free text into structured JSON), content filtering (e.g., removing prohibited information), and citation linking (e.g., attaching source document references). In some implementations, post-processing also includes reranking generated answers based on confidence scores or external verification.

When a RAG system is integrated into operational workflows, the post-processor may also trigger business logic, such as creating follow-up queries if confidence falls below a threshold, or routing uncertain cases to human review.

In practice and evaluation

In enterprise search deployments, post-processing often includes source highlighting — linking each statement in the generated answer to specific source documents retrieved earlier.

Evaluation typically covers:

• Response accuracy — Alignment between generated claims and cited sources.

• Consistency — Whether similar queries yield stable outputs when the relevant context is unchanged.

• Answer accuracy — Agreement between the generated answer and a verified correct answer in the evaluation datasets.

Effective post-processing preserves the connection between retrieved evidence and generated answer, ensures outputs meet structural and compliance requirements, and enhances user trust through transparent source attribution.

Evaluating RAG systems in practice

Evaluating retrieval augmented generation pipelines is inherently more complex than evaluating standalone language models. Errors can arise in any stage — retrieval, prompt construction, or generation — and can interact in subtle ways. The following challenges highlight why conventional evaluation methods often fall short and where additional rigor is needed.

Disentangling retrieval and generation errors

One of the most common difficulties in RAG evaluation is determining whether a bad answer stems from the retriever returning poor context or the language model misusing correct context. Treating RAG as a black box obscures these distinctions, resulting in misleading metrics if all errors are attributed to the same cause.

Key considerations include:

• Logging both retrieved documents and the final prompt during evaluation to identify where errors originate.

• Evaluating retrieval quality independently from generation quality before calculating end-to-end metrics.

Ensuring answer relevance

In many domains — especially legal, biomedical, and financial — creating a complete set of ground truth answers is costly and sometimes impractical. This forces reliance on partial datasets, synthetic data, or human raters, which introduces bias and inconsistency.

Mitigation strategies:

• Use multiple reference answers when possible.

• Combine automated matching (e.g., semantic similarity) with human spot checks.

This human annotation workflow mirrors RAG evaluation, where retrieved context is validated and compared against reference answers to determine answer correctness.

LLM evaluation considerations

Even if retrieval is accurate, the language model may fail to integrate the retrieved material into its answer. Measuring context relevance and recall helps detect this, but it requires alignment between retrieved chunks and the generated response.

Approaches include:

• Automatic overlap analysis between the generated output and retrieved context.

• LLM-as-a-judge prompts that verify grounding.

Accurate measurement of context use ensures that improvements in retrieval translate into better generation outcomes, preventing wasted effort on retrieval optimization that the language model fails to leverage.

Domain adaptation and evaluation dataset limitations in RAG performance

A RAG system tuned for one domain may not perform consistently when deployed in another industry. Evaluation datasets often lack domain-specific language, formats, or constraints, leading to inflated performance estimates.

Key approaches:

• Create evaluation datasets using in-domain documents.

• Perform cross-domain testing to detect degradation.

Coverage analysis can reveal these dataset gaps before deployment.

A domain-specific dataset coverage heatmap, here showing diabetes-related content distribution. Such visualizations can identify biases that undermine cross-domain RAG evaluation. Source: ARIA, HaRIA, and GeRIA: Novel Metrics for Pre-Model Interpretability

Modern evaluation frameworks

Automated metrics like nDCG or semantic similarity, often implemented through a computerized evaluation framework, offer speed and scalability, but can miss subtle reasoning or tone issues. Human evaluation provides richer feedback but is slower and more expensive.

Balanced approaches:

• Use automated scoring for bulk measurement.

• Apply expert review selectively for ambiguous or high-impact queries.

Combining both approaches ensures coverage of large evaluation datasets while preserving the nuanced judgment needed for complex or high-stakes queries.

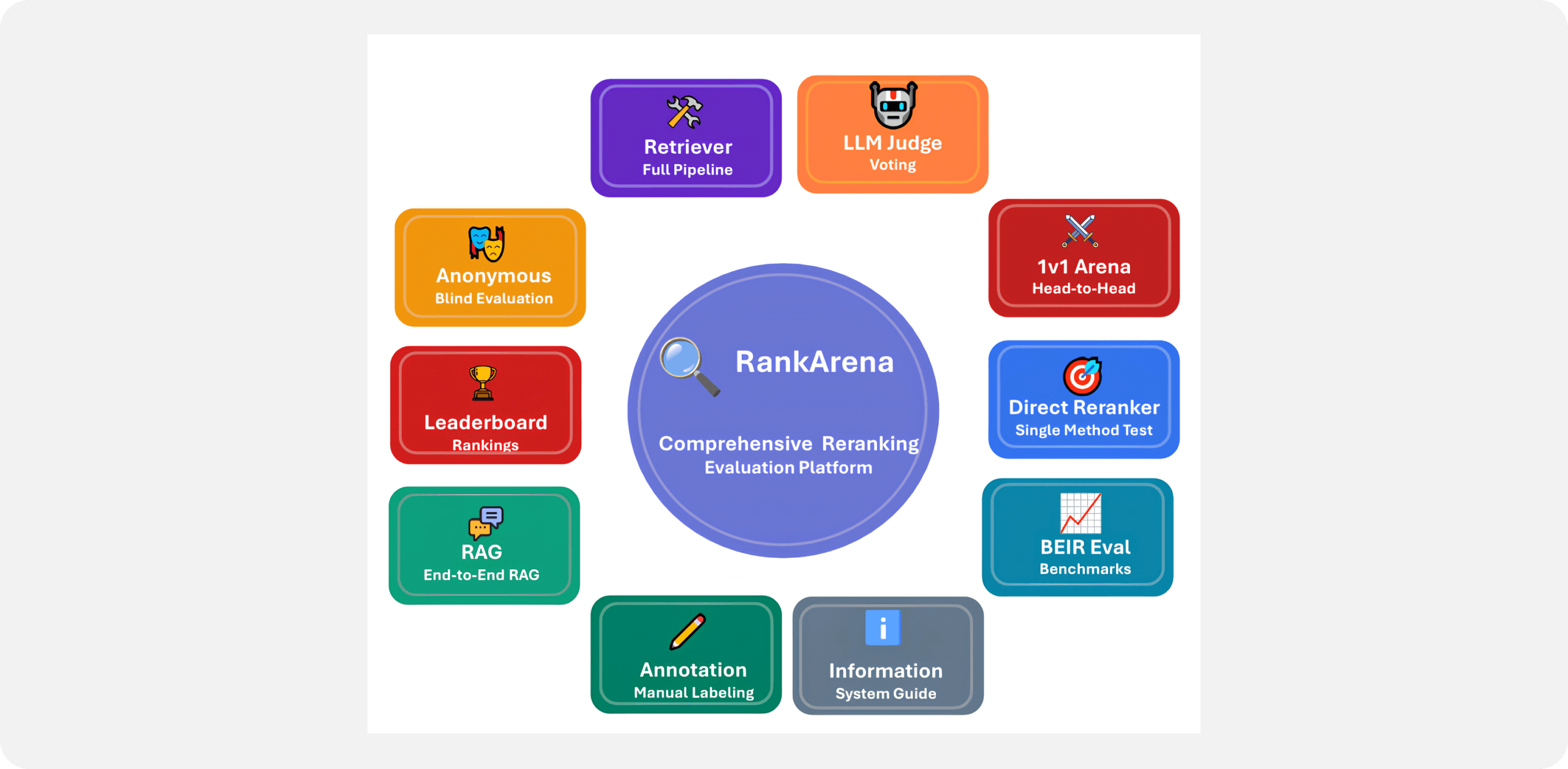

Evaluation modes in RankArena, an open-source platform for large-scale evaluation of retrieval, reranking, and RAG pipelines using both human and LLM feedback. This diagram shows automated metrics, human scoring, and hybrid approaches, supporting balanced RAG evaluation at scale. Source: RankArena: A Unified Platform for Evaluating Retrieval, Reranking, and RAG with HumanandLLMFeedback

Latency and scalability constraints in the evaluation process

Running evaluations on large RAG systems can be resource-intensive, particularly when retrieving relevant information from massive indexes or using large language models with long context windows. High-latency retrieval or generation slows test cycles, inflates costs, and may bias results toward smaller, faster models that don’t reflect production performance requirements.

Key approaches:

• Cache retrieved documents and embeddings during evaluation runs.

• Sample representative queries instead of running full datasets when testing changes.

Efficient evaluation pipelines enable frequent, large-scale tests without compromising metric coverage or accuracy, ensuring that retrieval augmented generation insights remain actionable in production environments.

Metric interpretation and business alignment in RAG performance

High metric scores do not always translate to real-world impact. A system may score well on retrieval metrics but fail to meet operational objectives, such as reducing customer support handling time or improving decision accuracy in regulated workflows.

Key steps:

• Define evaluation criteria that map directly to operational goals.

• Track system performance in production alongside offline metrics.

Linking evaluation metrics to measurable business outcomes ensures that improvements in retrieval or generation translate into meaningful value for stakeholders.

Addressing these challenges requires a structured evaluation process that isolates each stage of the RAG pipeline while still measuring end-to-end performance. Unlike monolithic language model evaluation, RAG evaluation must capture the interplay between document ranking quality, prompt construction, and generation behavior.

Without this granularity, teams risk optimizing for proxy metrics that fail to improve real-world outcomes. A deliberate, well-instrumented approach — supported by reliable evaluation datasets, clear criteria, and the right balance of automated and human scoring — is essential to build RAG systems that perform consistently in production.

What to measure: core metrics for RAG evaluation

RAG systems evaluation process requires detailed metrics that separately measure retrieval, generation, and end-to-end performance. Treating the system as a single unit risks masking weaknesses in individual components. A structured evaluation process defines metrics for each stage of the RAG pipeline and applies them through consistent evaluation across test runs. This section outlines the primary categories of metrics used in RAG evaluation and how they align with operational goals.

Using normalized discounted cumulative gain (nDCG) and discounted cumulative gain

Retrieval evaluation focuses on measuring the effectiveness of the retriever’s output — the ranked list of documents — using relevance judgments against a ground truth set. Unlike the earlier discussion of retrieval design and types, here the emphasis is on quantitative performance measurement.

It measures how effectively the retriever surfaces relevant documents from the index in response to a query. This is distinct from evaluating the output — the goal here is to quantify retrieval quality before generation begins.

Standard retrieval metrics include:

• Retrieval accuracy — Percentage of queries for which the retrieved set contains the correct or supporting documents.

• Retrieval effectiveness — Broader measure that accounts for both coverage and ranking quality, often assessed using graded relevance scores.

• Relevance value — A weighted measure of how strongly each document matches the query, typically determined by graded relevance judgments.

• Reciprocal rank — The inverse of the rank position of the first relevant document; higher values indicate that correct results are surfaced earlier.

• nDCG (normalized discounted cumulative gain) — Measures ranking quality by rewarding highly relevant results that appear early in the ranked list.

• Context recall — Checks whether all necessary supporting information is present among the retrieved items, regardless of rank.

In practice, retrieval evaluation requires a ground truth set of relevant or correct documents per query. For example, in a compliance-focused RAG system used for financial reporting, top-ranked retrieved documents might include specific regulatory clauses. Metrics like reciprocal rank and nDCG then determine how quickly and accurately these clauses appear in the ranked output.

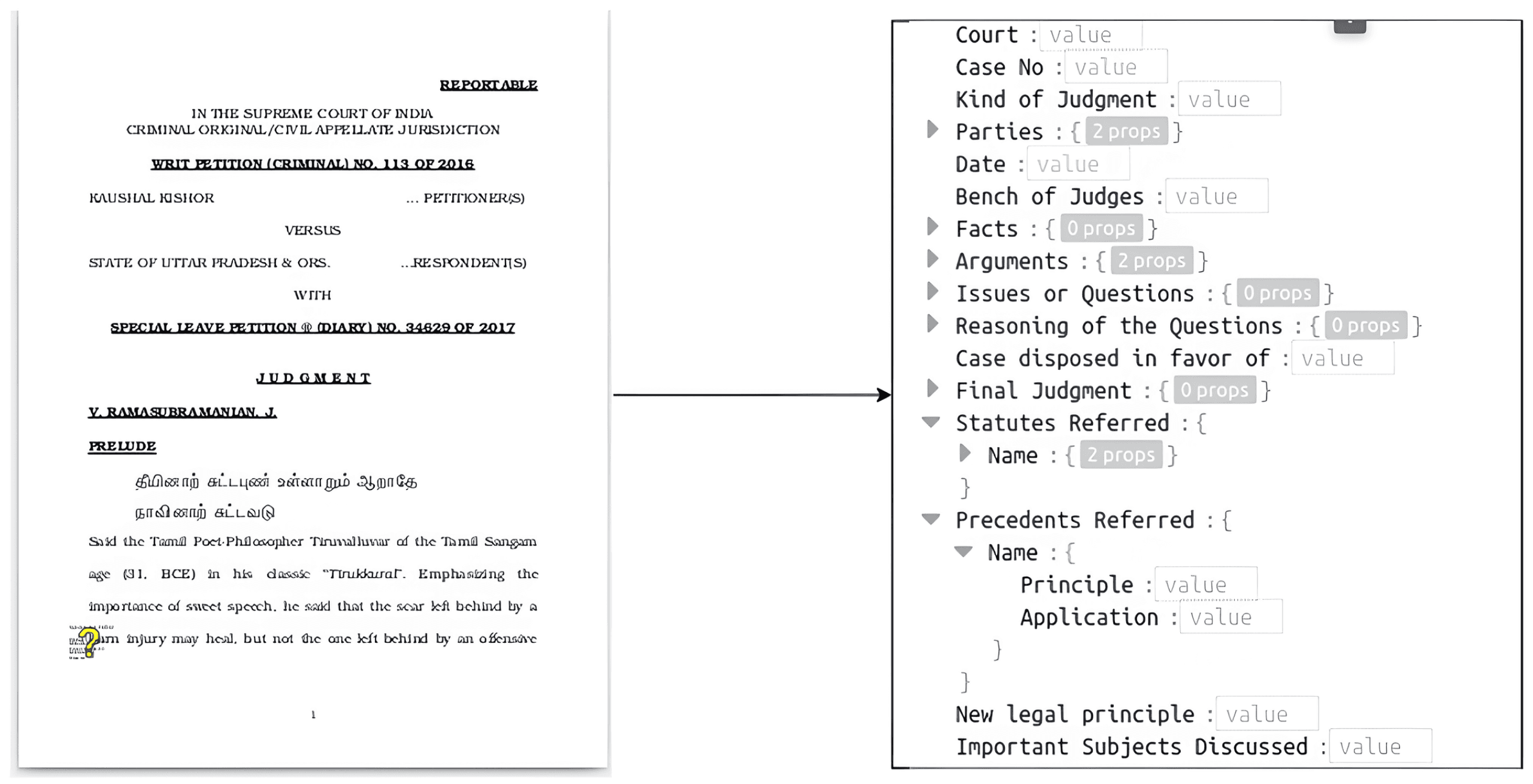

Transforming unstructured legal judgments into structured templates to improve case law retrieval. Structured representations enable more accurate retrieval evaluation in domain-specific RAG systems. Source: Augmented Question-guided Retrieval (AQgR) of Indian Case Law with LLM, RAG, and Structured Summaries

Well-calibrated, custom metrics help isolate retrieval errors from generation errors, ensuring that downstream issues are diagnosed accurately for better performance.

Generation evaluation

Generation evaluation measures how well generative models, such as large language models (LLMs), transform retrieved data into accurate, relevant, and well-structured answers. This stage focuses on the model’s ability to ground its output in the provided information, reason effectively, and present the result in a form that meets task requirements.

Key generation metrics include:

• Answer accuracy — Compares the generated answer to reference answers or gold-standard responses, often using exact match, F1 score, or semantic similarity.

• Grounding — Assesses whether statements in the output are directly supported by the retrieved content, helping detect hallucinations.

• Coherence and fluency — Rates the logical flow and linguistic quality of the answer, typically scored by human evaluators or automated language quality models.

• Concise — Measures whether the answer delivers necessary information without redundancy or irrelevant content.

These metrics can be computed automatically, assessed by human reviewers, or applied in hybrid workflows. In production RAG workflows, generation evaluation is often tied to downstream KPIs — such as decision accuracy in compliance review or resolution rates in customer support — ensuring that model outputs are not only correct but actionable.

End-to-end metrics

End-to-end evaluation measures the overall performance of the RAG pipeline as a single system, from query intake to final answer delivery. Unlike retrieval or generation metrics alone, these scores reflect how well all components work together under realistic conditions.

Standard end-to-end metrics include:

• Task success rate — Percentage of queries where the system delivers a correct and complete answer, often judged by domain experts or benchmark datasets.

• User satisfaction score — Derived from explicit ratings or behavioral signals (e.g., follow-up query rates) in live deployments.

• Time to answer — Total latency from query submission to output, capturing both retrieval and generation delays.

• Business impact metrics — Application-specific outcomes, such as reduced case resolution time in support workflows or improved compliance rates in regulated industries.

Evaluating at the system level is essential for detecting performance bottlenecks that emerge only when retrieval, prompt construction, and language model generation operate together, ensuring that response quality remains high under real-world conditions.

Benchmark limitations and adaptations

Many existing RAG benchmarks were designed for either retrieval or generation tasks in isolation, not the combined pipeline. This can lead to overestimation of system performance when subsystems are evaluated with inappropriate or incomplete metrics. For instance, benchmarks may emphasize retrieval precision without testing whether the retrieved context is effectively used in generation, or vice versa.

Newer evaluation efforts attempt to integrate both aspects, but they still face trade-offs in domain coverage, annotation quality, and reproducibility. Understanding these gaps is essential before interpreting metric scores in production settings.

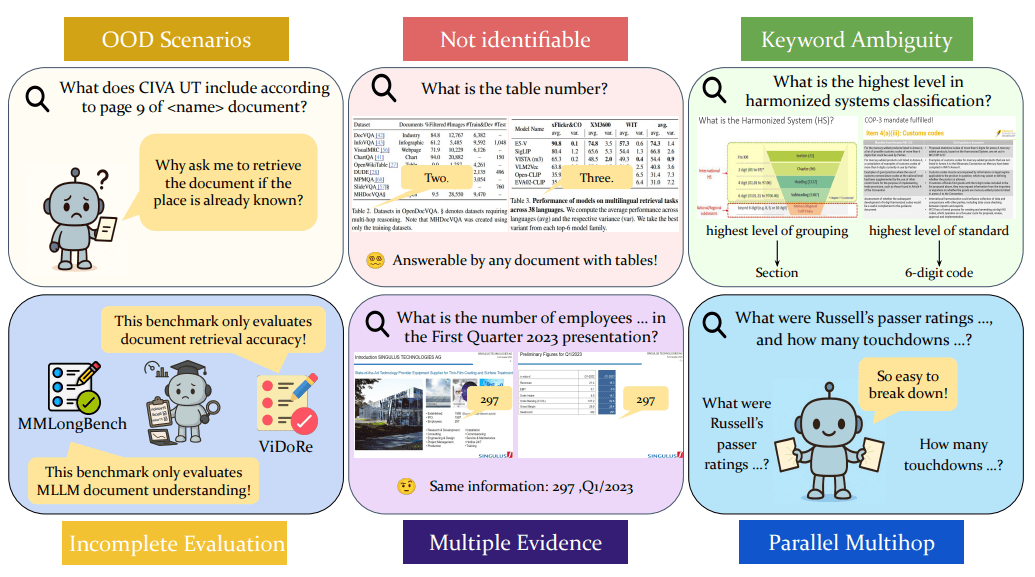

Limitations in the current document RAG benchmarks, highlighting gaps between retrieval and generation evaluation. Source: Are We on the Right Way for Assessing Document Retrieval-Augmented Generation?

Human-in-the-loop evaluation

Human review provides qualitative insights that automated metrics cannot fully capture, such as nuanced reasoning, domain-specific compliance, or tone appropriateness. In RAG systems, human-in-the-loop evaluation can operate at multiple levels:

• Retrieval assessment — Reviewing retrieved documents for factual accuracy, domain relevance, and completeness.

• Prompt and context validation — Ensuring that retrieved materials are incorporated into prompts without distortion or omission.

• Final answer scoring — Rating generated responses for factual correctness, clarity, and adherence to domain norms.

Typical methods include double-blind expert review to reduce bias, graded scoring scales for structured feedback, and annotation platforms for distributed evaluation. Human input is especially critical for domains with ambiguous ground truth, high stakes (e.g., legal or medical), or compliance requirements.

Incorporating periodic human review alongside automated testing creates a feedback loop that helps maintain quality in production, identify silent failures, and fine-tune both retrieval and generation components.

Best practices and recommendations

Building reliable RAG systems is as much about disciplined, thorough evaluation as it is about engineering. Without a deliberate testing framework, teams risk shipping pipelines that score well on paper but fail under real-world conditions. The following practices distill lessons from production deployments, academic benchmarks, and industry experiments.

Align metrics with business objectives

Select evaluation criteria that map directly to operational priorities. If the goal is to reduce average handling time in customer support, retrieval quality alone is insufficient — measure whether the final answers shorten resolution time.

Evaluate retrieval and generation separately before end-to-end

Test retrieval independently to confirm that relevant, high-quality documents are surfaced. Then measure generation quality in isolation, using a controlled context set. This avoids misattributing errors and supports targeted optimization.

Balance automated and human evaluation

Automated metrics scale well and provide rapid iteration feedback. Human raters capture reasoning quality, tone, and other nuanced attributes that models often miss. Use automated scoring for broad coverage, and reserve human review for high-impact or ambiguous queries.

Match benchmarks to your domain—or build your own

Off-the-shelf benchmarks rarely capture the complexity of domain-specific terminology, formats, or compliance constraints. For regulated or niche sectors, invest in creating datasets that reflect real production scenarios.

Monitor live performance for drift

Offline metrics degrade over time as user behavior, knowledge sources, and operational requirements change. Instrument production systems to log information retrieval performance, grounding, and answer relevance in live queries.

Optimize evaluation cost and frequency

Full-scale evaluations on every pipeline change are rarely practical. Cache intermediate results, reuse embedding computations, and test on representative subsets to keep costs manageable without sacrificing insight.

Integrate evaluation into the development workflow

Treat evaluation as a continuous process, not a one-off task. Make metric dashboards, error breakdowns, and user feedback part of the team’s daily review cycle.

Ultimately, the most effective RAG system evaluation strategies are integrated into the product lifecycle, rather than being bolted on as a final check. Teams that measure the right things, in the right way, and at the right time build systems that stay accurate, relevant, and trusted — even as data sources, domains, and user needs evolve.
